Case Studies

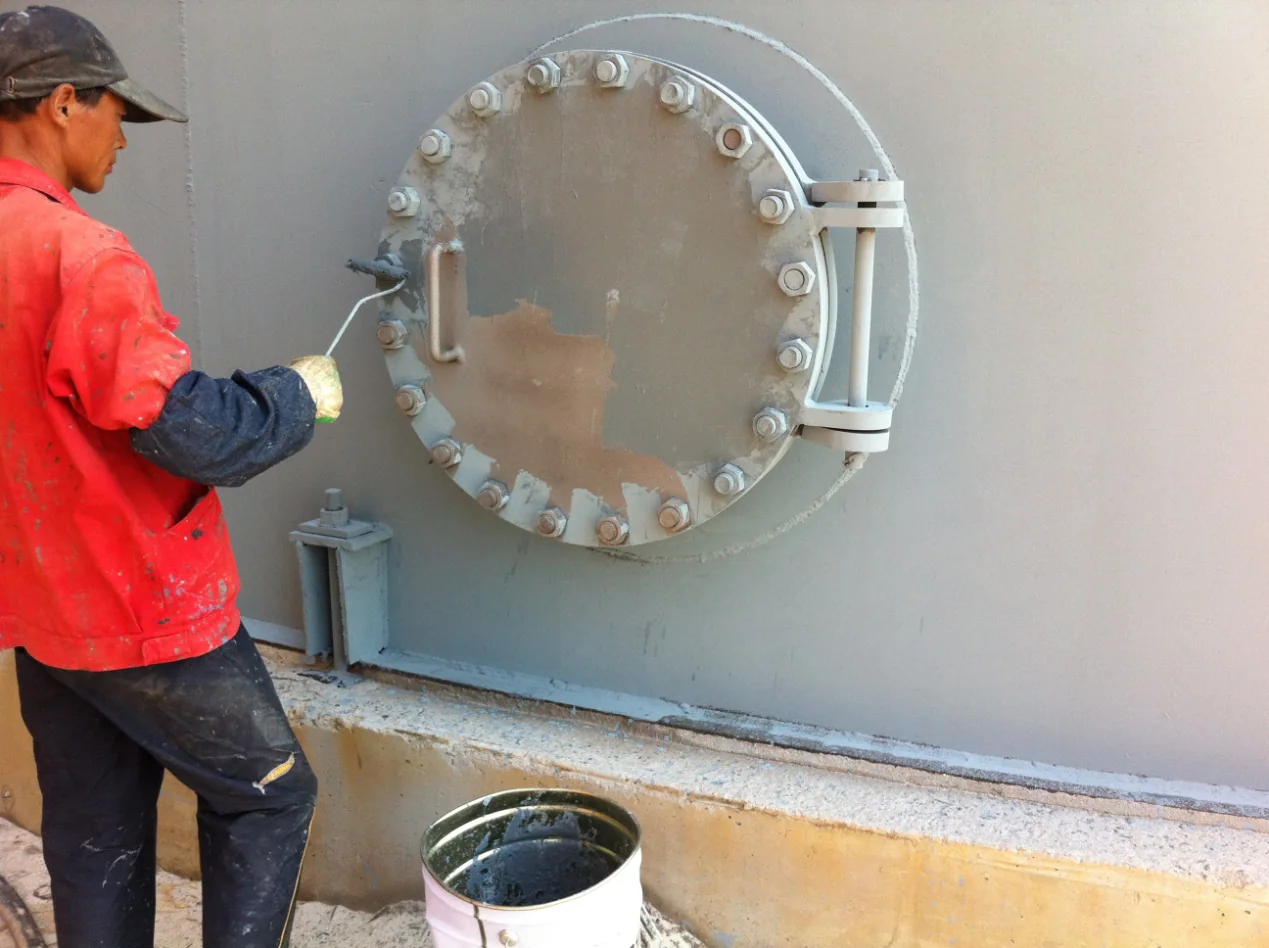

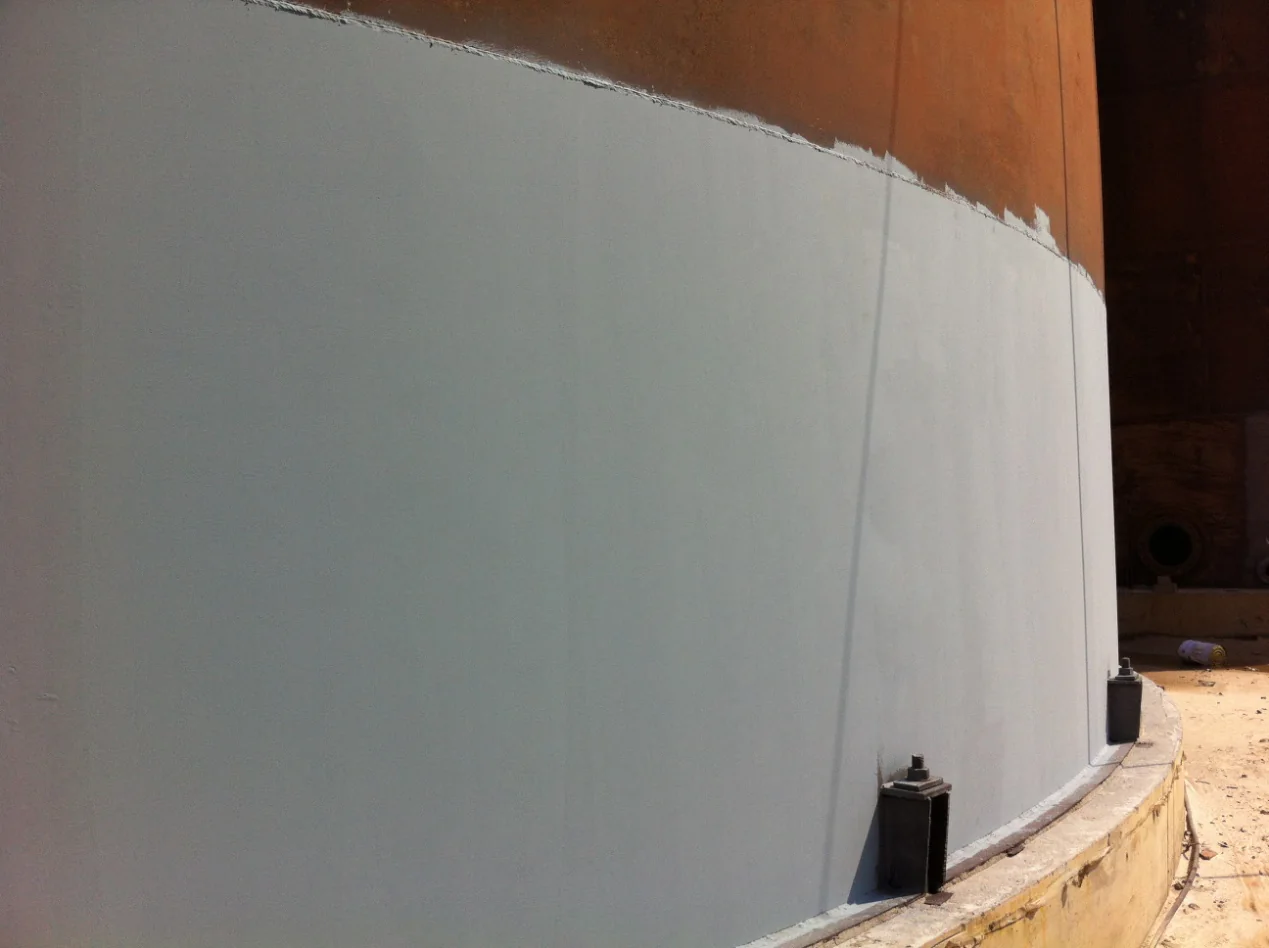

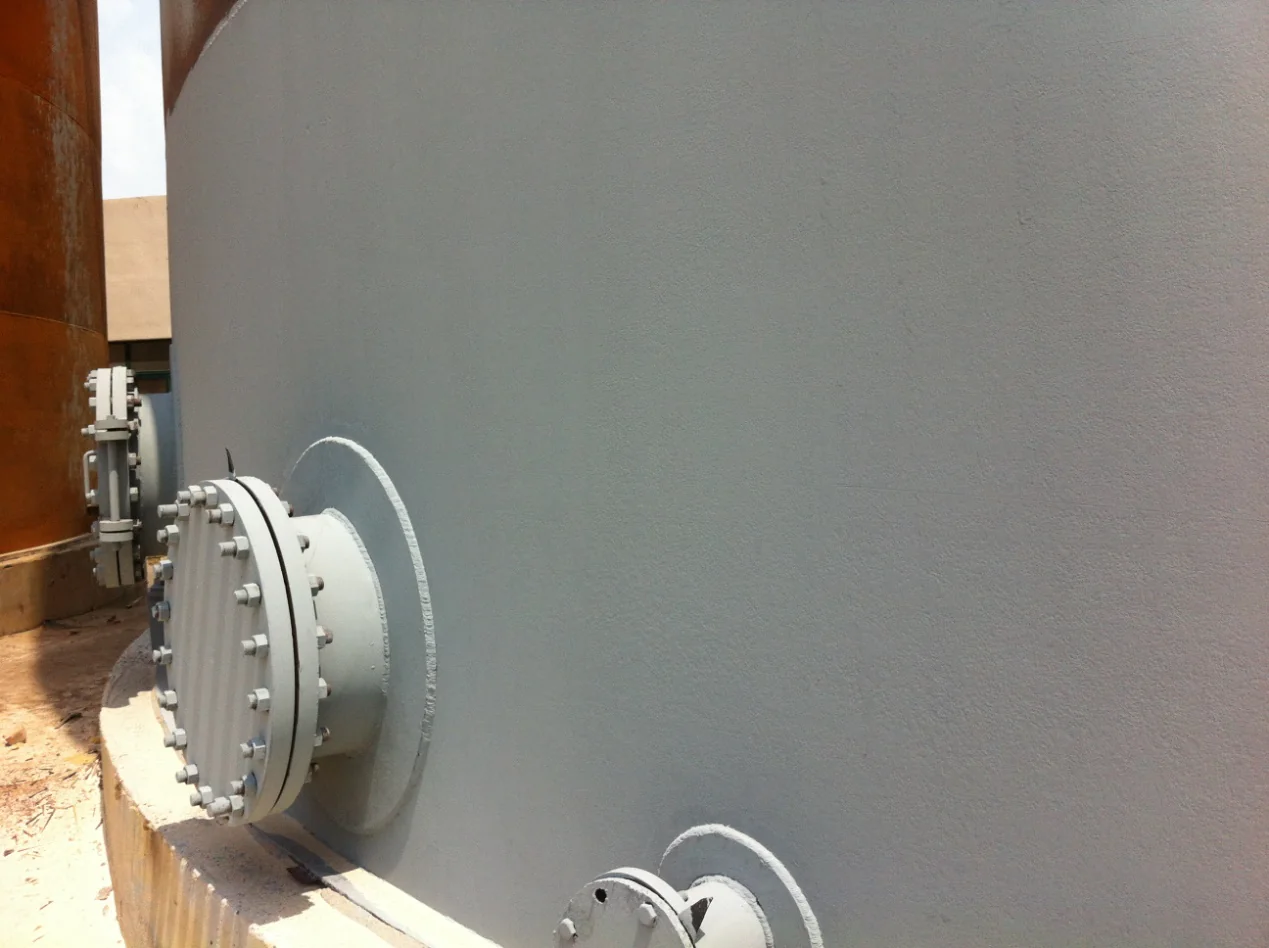

The recorded Sa 2 preparation, two-primer-coat and two-intermediate-coat stages of the tank system.
Severe coastal atmospheric corrosion and solar heat gain at the tank exterior.
Prepare the stainless-steel exterior to Sa 2 and apply the recorded five-coat system: two primer coats, two intermediate coats and one solar-reflective finish.
ZM99-01A37 anti-corrosion primer + ZM99-01A64 marine high-weatherability coating + ZM99-01A17 solar reflective coating
Surface preparation to Sa 2, two primer coats, two intermediate coats and one solar-reflective finish coat.
The recorded inspection found the coating at design thickness, uniform and consistent in colour, without wrinkling or agglomeration; construction met the acceptance standard.
The recorded acceptance confirmed the designed multi-layer build and a uniform finish on the tank exterior.
