High-Temperature Insulation Field Measurement Protocol

Purpose and limits of the protocol

Use this protocol to create a field record that can support a later, separate interpretation. The collection team defines what was compared and preserves the context needed to understand each observation; it does not decide whether an insulation system is effective.

Before the survey, name the decision that the later reviewer is expected to consider and the evidence the field work can realistically collect. If the requested conclusion requires a controlled test, energy balance or laboratory method outside the field plan, record that limitation before measurements begin.

Define the evidence question before selecting locations

State the narrow comparison or observation question in neutral terms. Examples include whether two documented zones can be compared under the same operating state or whether a local surface pattern repeats around an equivalent detail.

Do not frame the collection plan around a promised outcome. Questions about performance, savings, conductivity, service life or superiority require methods and evidence beyond a general field measurement record.

Create comparable measurement and control zones

Map treated, reference and boundary zones against fixed equipment landmarks. A nearby location is not automatically a valid control: compare function, geometry, orientation, substrate, existing layers, insulation build, supports, penetrations and surrounding heat paths before pairing zones.

If no defensible comparator exists, collect a well-defined observation record rather than presenting two unlike areas as a controlled comparison. Preserve the reason each zone was included or excluded.

• Assign stable zone and measurement-point IDs.
• Record edges, transitions and details separately from broad surfaces.
• Identify external exposure differences such as weather, ventilation or nearby equipment.
• Keep altered, repaired or inaccessible areas visible in the zone map.

Record operating state and boundary conditions

Link every measurement set to the equipment state observed at that time. Record whether operation was stable, changing, starting, stopping or idle, together with available process context supplied by the site.

Document changes in load, flow, adjacent equipment, access openings, ventilation, weather or other conditions that could affect comparability. Do not normalize missing operating information with assumed typical values.

Identify instruments, methods and measurement locations

Record the instrument identity, measurement method, setup, verified status where documentation is available, operator and file naming convention. Preserve the instrument output in its original form together with any settings needed by the later reviewer.

Define repeatable positions and viewing geometry before collection begins. For imaging methods, record the view direction, distance or framing reference, surface condition and any method-specific setting that can affect interpretation. For contact methods, record the precise contact location and relevant surface condition.

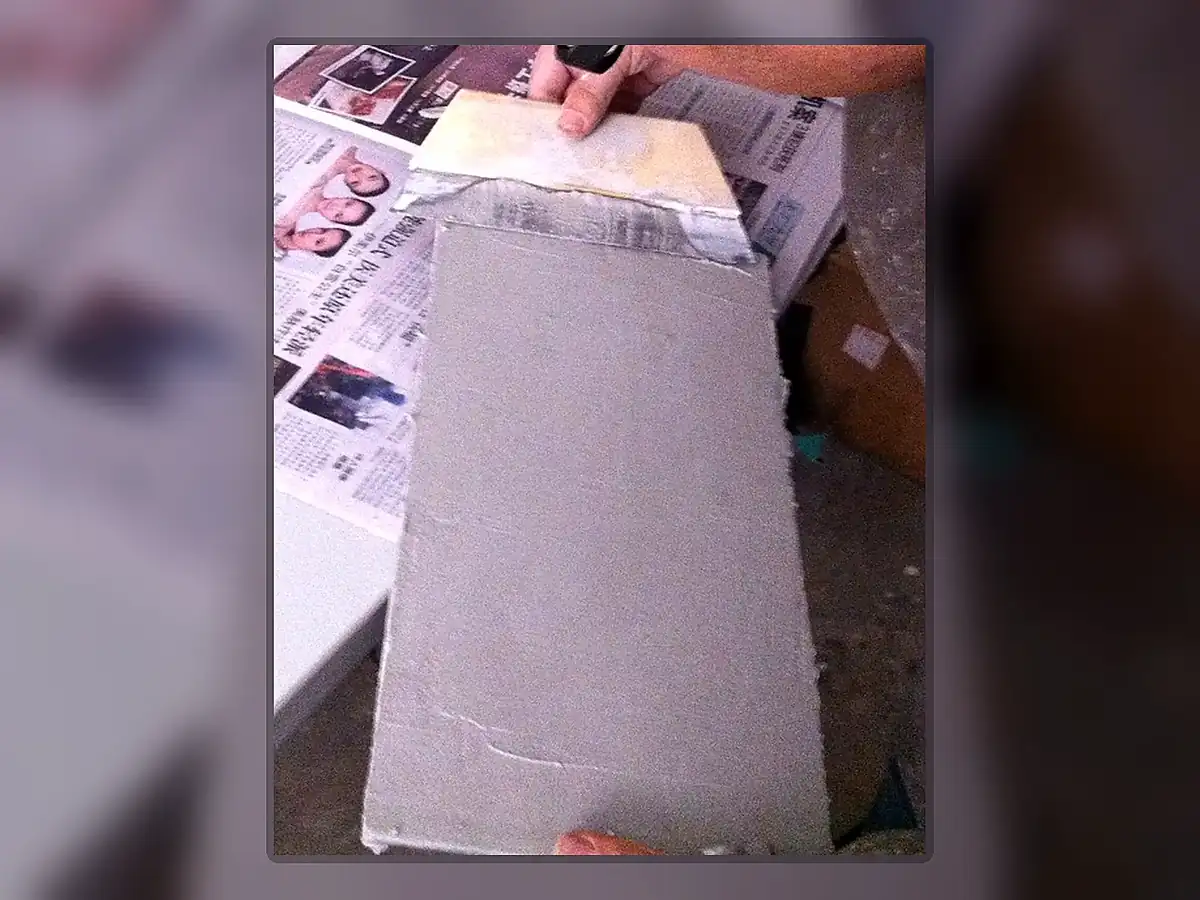

Document substrate, geometry and system build

For each zone, record the known substrate, wall or shell geometry, supports, joints, penetrations, edges and nearby thermal bridges. Distinguish verified construction information from what can only be seen at the surface.

Document the insulation or coating build only from authorized installation records, traceable site information or direct observations. Unknown layer identity, thickness, cure history or previous repair should remain an explicit uncertainty rather than an assumed system description.

Use repeatable timing and stabilization context

Plan the sequence so paired zones are observed under the most comparable operating and environmental context available. Record start and finish times, pauses, access changes and the order in which locations were measured.

The field team should document the evidence of operating or environmental stability used for the measurement window without inventing a universal waiting period. If conditions change, mark the affected set and decide whether a repeat under a comparable state is required.

Repeat measurements without erasing variation

Use a consistent repeat sequence at the same identified locations and retain each observation rather than reporting only a preferred reading. If a point is moved because access or surface condition prevents the planned measurement, preserve both the original plan and the revised position.

Visible variation may be useful evidence of geometry, surface condition or operating change. Record it for interpretation instead of removing it from the data set without explanation.

Record field observations without attribution

Photograph surface condition, joints, edges, repairs, deposits, supports, penetrations and any local feature associated with a measurement. Use neutral descriptions that distinguish what was observed from why it may have occurred.

A temperature difference, image pattern or surface change is an observation. The later interpretation must consider instrument context, boundary conditions, system build, geometry and alternative explanations before attributing it to insulation performance.

Log deviations, missing evidence and uncertainty

Maintain a live deviation register for changes from the planned zones, operating window, instrument setup, access, timing or measurement method. Connect each deviation to the affected observations so its significance can be reviewed later.

• State which comparison is affected and why.
• Identify missing operating, installation or instrument information.
• Record contamination, repairs, geometry or surface differences that may confound comparison.
• Separate correctable field omissions from limitations that require a different test design.

Assemble the field evidence package

Keep the evidence question, zone map, comparison rationale, equipment state, boundary conditions, instrument register, point locations, system-build record, raw outputs, photographs, repeats and deviations together. Use matching IDs across every file and field sheet.

Include excluded or inconclusive sets rather than silently removing them. The package should allow an independent reviewer to reconstruct how evidence was collected and to identify which comparisons remain supportable for later assessment.

Repeat or escalate when comparability is not preserved

Repeat collection when a comparable operating state can reasonably be restored and the affected zones and instrument setup remain traceable. Escalate when the question requires a different method, the system identity is uncertain, the boundary has changed, or access prevents a defensible comparison.

Do not convert an incomplete field record into a performance statement. An inconclusive data set can still improve the next collection plan when its limitations are documented clearly.

Hand the record to separate interpretation

Transfer the complete package to the responsible reviewer with the original evidence question and a list of unresolved items. The handoff should distinguish raw observations, site-supplied facts, field deviations and any hypotheses raised during collection.

Result interpretation belongs to a separate review that tests comparability and claim boundaries. Product selection, system design and commercial performance statements require their own verified inputs and authorized technical process.

Scope limits

This protocol does not determine insulation effectiveness, quantify heat loss or savings, publish a temperature reduction, derive thermal conductivity, predict service life, select a DAYU-X product or prove one system is superior. It defines how field evidence is collected and handed forward for an appropriately bounded interpretation.
