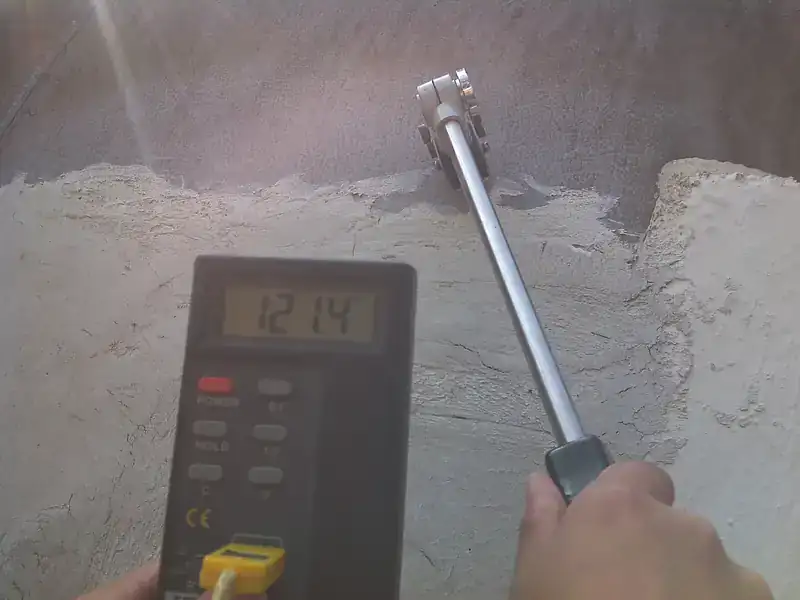

Industrial Pipeline Insulation Project Checklist

A pipeline insulation project should be controlled as a sequence of identified line segments, interfaces and records. This checklist covers scope definition, pre-job condition, supports, valves, flanges, penetrations, removable sections, water paths, hold points and maintenance handoff. It does not replace pipeline-detail troubleshooting or product-specific application instructions.

Define the line scope and operating boundary

Identify the line, process direction, start and end points, branches, operating states and adjacent equipment included in the work. Divide long or changing runs into traceable segments instead of relying on one description for the complete system.

Mark tie-ins, branches and changes in elevation.
Separate operating and shutdown conditions.
Identify sections remaining in service or outside the work boundary.
Assign a consistent segment code for photographs and inspection records.

Record the pre-job condition by segment

Document substrate and existing insulation condition, visible corrosion, leakage, contamination, damaged supports, retained layers and previous repairs before removal or preparation changes the evidence. Escalate structural or active process defects outside the insulation scope.

Schedule supports, valves, flanges, and penetrations

Treat each interface as a named work item with a preparation, application and inspection plan. Confirm access for bolting, operation, leak detection and future maintenance before insulation closes the detail.

Supports and movement points

Record fixed and sliding supports, shoes, hangers and movement allowances. The work must not block intended movement or hide an unresolved water path.

Valves, flanges, and removable access

Define removable boundaries and identification so equipment can be inspected or opened without uncontrolled damage to adjacent accepted sections.

Wall, floor, and equipment penetrations

Check clearances, seals, drainage and transitions where the line crosses another construction. Assign responsibility for interfaces outside the insulation work.

Control water and vapour paths

Map outdoor exposure, washdown, condensation, drainage direction and points where water could enter or become trapped. Any vapour-control requirement must be defined by the approved project design rather than inferred from a generic checklist.

Set the application sequence and hold points

Plan segment release so substrate acceptance, difficult details and concealed work are inspected before subsequent stages remove access. Product-specific preparation, layer build, joining and cure requirements remain controlled by the authorized documents.

Release the substrate and repairs before insulation application.
Inspect supports, valves and penetrations before they are obscured.
Record materials and segment boundaries used in each work stage.
Close nonconformities before accepting the next layer or section.

Compile acceptance records

The final record should connect line segments, materials, photographs, inspection points, repairs, exclusions and approvals. An overview image cannot substitute for traceability at supports, valves, terminations and removable sections.

Hand the system over for maintenance

Provide drawings or marked records showing access points, removable sections, known exclusions, repair areas and details that require observation. Maintenance teams need to know how to open and reinstate the system without turning a controlled interface into a hidden defect.

Checklist limits and separate troubleshooting

This checklist controls project execution; it does not diagnose the cause of an existing thermal bridge or water-entry failure, specify product parameters, or quantify heat-loss improvement. Use the dedicated pipeline-detail Resource and verified project documents for those decisions.
