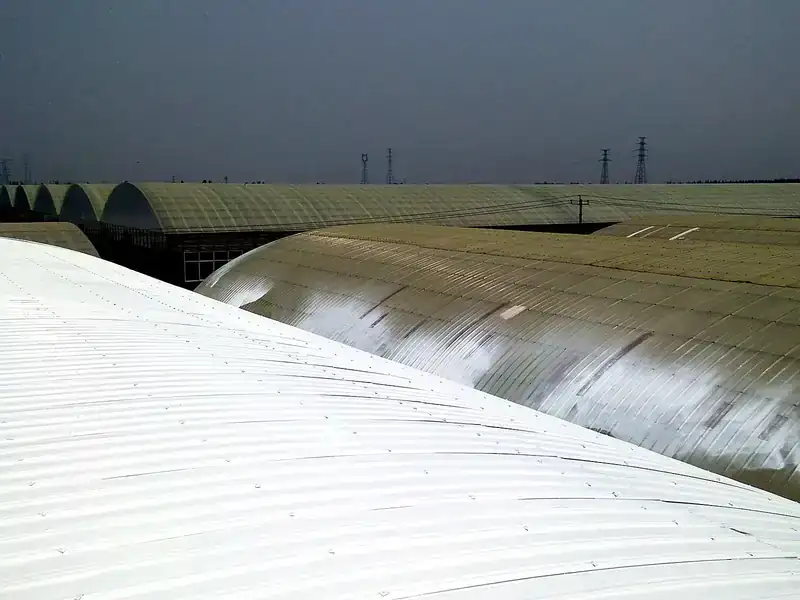

How to Interpret Industrial Roof Temperature Measurements
Surface readings change with solar intensity, wind, cloud, colour, emissivity, roof construction, measurement angle and time.
Technical Articles
How to Interpret Industrial Roof Temperature Measurements
Surface readings change with solar intensity, wind, cloud, colour, emissivity, roof construction, measurement angle and time.
01
Industry background
Surface readings change with solar intensity, wind, cloud, colour, emissivity, roof construction, measurement angle and time. A valid field comparison uses documented instruments, comparable zones, the same time window and operating state, and reports the observation boundary. It does not convert one photograph into a guaranteed cooling or energy-saving percentage.
02
How the problem develops
A solar-reflective surface reduces the fraction of incident solar energy absorbed by the roof or tank. Thermal emittance, colour stability, cleanliness, weathering, roof construction and the insulation below influence the complete building response.
03
Common field signs
Typical evidence includes deposits, local oxidation, thinning, hot spots, changes around welds or supports, cracking at transitions and damage concentrated in the gas path. A photograph records the condition but does not by itself prove temperature, composition or remaining life.
04
Factors that change the risk
Continuous and peak temperature, cycling rate, shutdown cooling, gas composition, particle velocity, substrate thickness, geometry, access and required return-to-service time all influence the system decision.
05
Inspection and diagnosis
Record the equipment zone, substrate, operating state and representative defects. Clean a small area where needed, distinguish deposits from substrate loss, confirm the condition of joints and supports, and agree a trial area before full work.
06
Solution options
Possible measures include operating adjustment, removal of deposits, refractory or metal repair, improved sealing, insulation, heat recovery, erosion control and a compatible protective layer. A coating cannot replace a structural repair or an operating correction.
07
Material-selection principles
Select from verified service temperature, substrate, thermal cycling, gas or liquid medium, erosion, target function and the available curing window. Product data must be checked for the complete system rather than one headline property.
08
Surface preparation
Accept the substrate before opening material. Remove oil, salts, dust, loose material and incompatible residues; create the specified cleanliness and profile; repair defects; and protect prepared surfaces from flash rust, condensation and recontamination.
09
Application controls
Confirm material identity, batch, mixing, induction or thinning rules and usable time. Control air and substrate conditions, ventilation, wet or dry film build, stripe coats, overlaps, recoat windows and curing. Difficult geometry is coated from more than one direction. A valid field comparison uses documented instruments, comparable zones, the same time window and operating state, and reports the observation boundary. It does not convert one photograph into a guaranteed cooling or energy-saving percentage.
10
Quality control
Use an inspection plan with hold points for preparation, environment, mixing, each layer, representative thickness, continuity and cure. Record nonconformities and corrections so the final dossier describes what was actually applied.
11
Common mistakes
Frequent errors include coating contamination, trapping moisture, keeping an unsound old layer, applying one heavy pass, missing edges and backsides, exceeding the recoat window, confusing touch dry with full cure and returning equipment to service too early.
12
Maintenance strategy
Create baseline photographs and identify high-risk details. Reinspect the same locations after operating cycles or scheduled shutdowns, clean surfaces before judging them and repair local damage while the surrounding system is still sound.
13
Scope and limitations
A reflective finish does not repair roof leaks, active corrosion or failed joints and is not the same as process-equipment insulation. Climate, roof use, existing insulation and winter conditions must be considered.
14
Project summary
A reliable result comes from matching the real operating condition to a complete system, preparing the substrate consistently, controlling application and curing, and maintaining traceable records. Product selection is the consequence of that review, not the starting point.
