A protective surface treatment should not become the point at which unresolved bridge-concrete defects disappear from view. This article explains the evidence needed to define repair zones, examine transitions and decide whether a bridge element is ready for protection, should remain on hold or requires engineering escalation.
Surface protection can only follow a clearly defined substrate condition. Cracks, spalls, hollow or delaminated areas, exposed reinforcement and weak repair edges must be recorded before cleaning or repair changes their appearance.
The investigation does not certify structural capacity or prescribe repair design. Its purpose is to preserve bridge-specific evidence and establish the boundary for a later protective-treatment review.

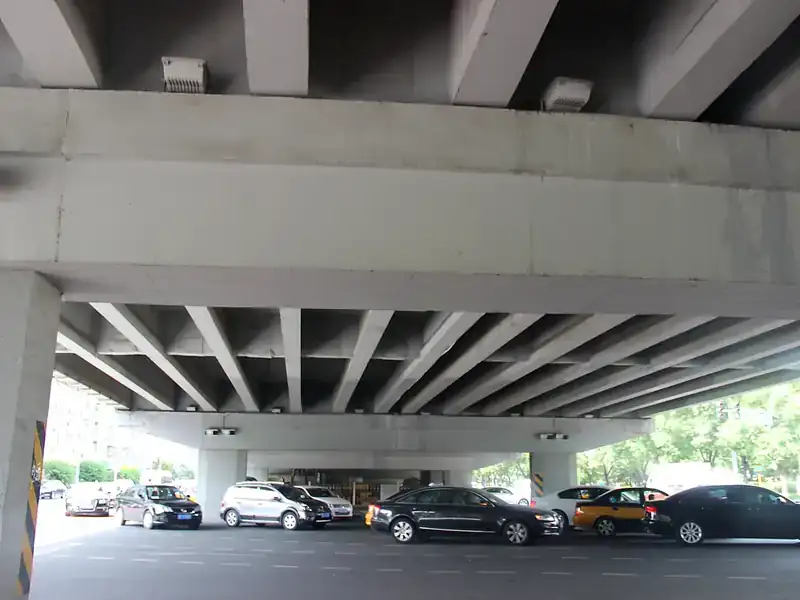

Name the bridge element, face and limits under review, then assign repeatable location references. Traffic, drainage, shelter, joints and previous interventions can create different condition patterns within one structure.
Record drainage routes, ponding evidence, joint interfaces, surface wear and repair boundaries. Keep traffic loading and structural significance outside the visual-condition conclusion unless qualified evidence is available.
Map leakage staining, deposits, cracking, spalls, patch edges and areas concealed by services or access limits. A sheltered face may retain a different moisture history from an exposed elevation.
Trace water from its possible entry points to visible outlets and staining. Identify intended movement, seal transitions and edges between original concrete and earlier repairs.
Document location, orientation, visible extent and relationship to joints, edges, repairs and water paths. Where sounding or another approved field method is used, keep its results linked to the marked area and method record.
Do not translate visual morphology into a structural diagnosis or numerical acceptance decision. Changing cracks, extensive unsound zones or uncertain causes require referral to the responsible bridge or structural discipline.
Where reinforcement is visible, record concrete loss, staining, deposits, apparent section condition, cover loss and nearby cracking without estimating capacity or declaring acceptance. Preserve enough context to show how the exposed area relates to the full element.
Repair extent, reinforcement treatment and structural disposition must follow the authorized engineering and repair documentation.
Map damp areas, efflorescence, leakage marks, blocked drainage, joint discharge and recurring wet boundaries. Photograph conditions with location and inspection timing so later observations can distinguish a persistent path from a temporary wet surface.
A dry inspection does not disprove intermittent leakage. Maintenance history, weather context and drainage condition may be needed before the repair boundary is closed.
Use condition terms that describe what can be seen or established by the approved inspection method. Reserve causes, structural implications and repair acceptance for the competent discipline and the evidence required by the project.
Protection readiness is not structural acceptance. If the proposed work could conceal an unresolved crack, reinforcement condition, joint movement or moisture source, the area remains on hold.
Mark each repair zone on the bridge-element map and show its relationship to sound concrete, joints, corners, embedded items and earlier patches. A transition edge should be inspectable and traceable rather than selected only for convenient access or appearance.
Keep defect removal, concrete repair and final surface preparation as distinct records. The protective-treatment review needs to know which condition was repaired and where the new boundary lies.
Use matched overview and detail photographs to compare the original defect map with the completed repair zones. Record changes in geometry, unresolved interfaces, repair edges, drainage details and areas that could not be inspected.
A visually uniform patch does not establish structural adequacy, material performance or long-term durability. It only contributes to the documented handover condition.
A zone may proceed to protective-treatment review when the repair boundary is traceable, the observable surface is stable and accessible, moisture paths within scope are resolved, and required engineering dispositions are closed. Hold the zone when repairs, drying, drainage work or records remain incomplete.
Escalate where structural significance, active movement, hidden deterioration, reinforcement condition or exposure uncertainty could change the repair or protection decision.
Provide the bridge-element map, as-found evidence, engineering and repair dispositions, post-repair photographs, moisture and drainage notes, unresolved exclusions and release authority. Material selection and application planning should begin from that controlled record rather than from a generic concrete description.
This article does not assess structural capacity, set crack or chloride limits, approve repair materials, define coating application values or claim service life. Those decisions require project-specific engineering, verified substrate and exposure evidence, and authorized technical documents.
Use the separate general concrete preparation workflow outside the bridge-specific investigation.
Assess retain-or-remove questions where an existing coating remains.
Plan bounded repairs for a retained coating system after its condition is known.
