How to Control Coating Coverage on Dense Boiler Tube Banks

Define the dense tube-bank coverage problem

Map the tube arrangement, spacing, depth and obstructions from the applicator's working positions. Identify surfaces that cannot be seen or reached from the front and separate them from areas that only appear difficult after scaffolding is installed.

Before preparation changes the evidence, record representative locations and known high-risk areas against the same tube-bank zone map that will be used during application and inspection.

The plan should cover preparation, application and inspection access. Improving spray access without providing a way to verify the prepared substrate leaves the most important control incomplete.

Identify inaccessible and shadow-zone surfaces

Use marked drawings, photographs or a physical walkdown to identify where tube geometry blocks the cleaning stream, abrasive path, spray fan or inspection view.

Verify preparation continuity before application

Inspect representative front, side and rear areas before coating. Lighting, mirrors, remote cameras or suitable inspection aids may be needed, but the chosen method must show whether contamination and loose material have actually been removed.

Prepared areas should be protected from dust, moisture and delay while adjacent work continues. A clean front face does not demonstrate the condition behind the tube.

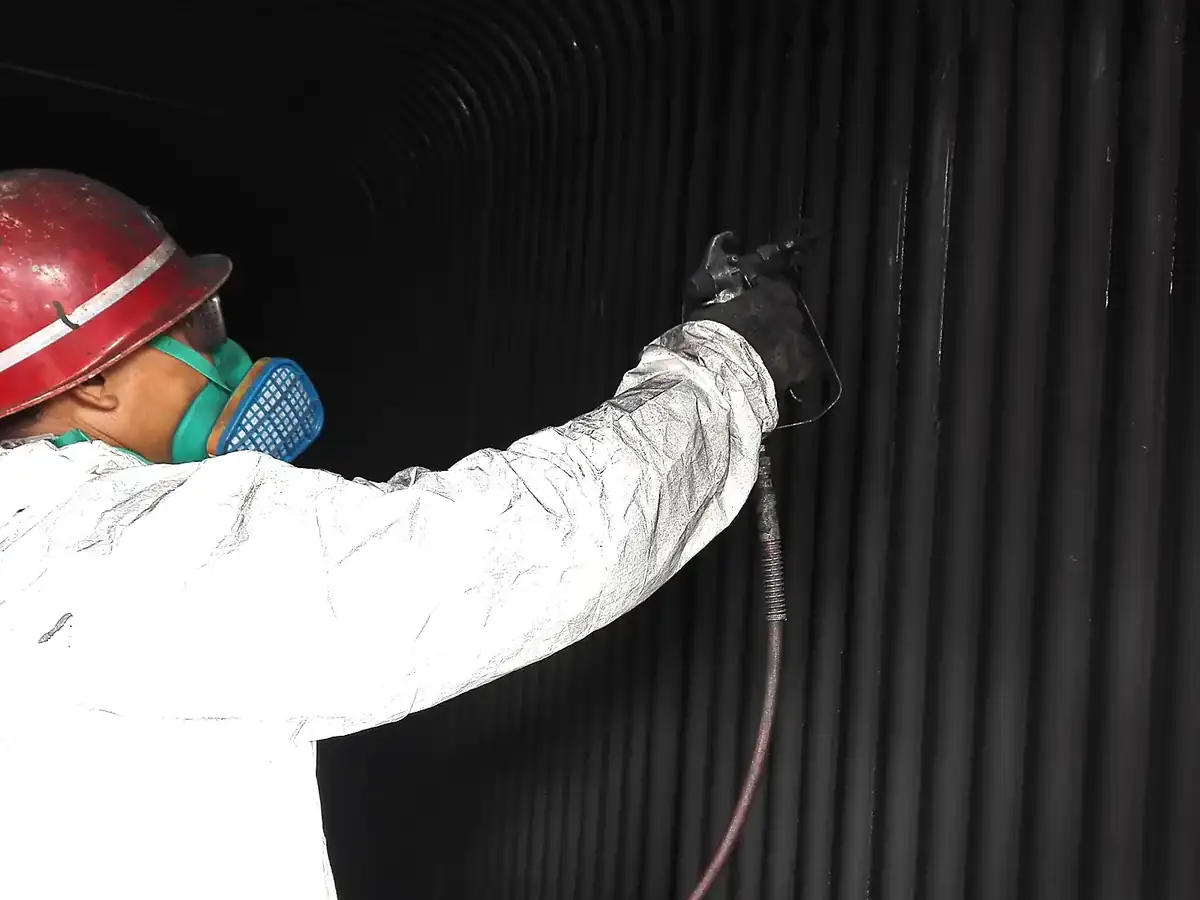

Plan spray direction, sequence, and access

Break the bank into manageable zones and specify application direction for each. Sequence work so overspray and access equipment do not contaminate accepted surfaces, and so each pass can be inspected before the next area closes the view.

Where access or geometry is uncertain, use a representative trial area and connect its preparation, application and inspection records to the same zone references used for the main work.

• Set safe access and lighting before preparation begins.
• Demonstrate spray reach on representative geometry.
• Apply from more than one controlled direction where required.
• Keep the same zone references in preparation, application and inspection records.

Inspect coverage without relying on front-face appearance

Inspection should sample the geometry that is most likely to be missed, not only the most visible surfaces. Check transition continuity, rear quadrants, attachment interfaces and boundaries between work zones.

Where direct film measurement is not practical on every surface, define complementary visual, witness-panel or other project-approved evidence without presenting it as a substitute for required measurements.

Record repair zones and release hold points

Mark defects against the same location system used during application. Reprepare and repair the affected zone using the approved procedure, then repeat the relevant preparation, layer, continuity and cure checks before release.

Retain the accepted zone record for later comparison at the same locations when service access permits. That comparison helps separate material behaviour from preparation or process effects, but it remains a field observation rather than a standalone performance claim.

Boundaries of visual and film-build verification

Uniform colour on accessible tubes does not prove coverage behind the bank. Likewise, a representative film reading cannot establish the condition of every hidden interface. The inspection plan should state the limits of each method and where direct access is required.
