When this product direction fits
Thermal-management materials for equipment, pipework and building assemblies where heat-transfer control is required.
Thermal Insulation Coatings
DY-27
Building Wall Thermal Insulation Coating
Thermal-management materials for equipment, pipework and building assemblies where heat-transfer control is required.
Product overview
Thermal-management materials for equipment, pipework and building assemblies where heat-transfer control is required.
A building insulation coating designed around hollow glass microspheres and a water-based binder system for lower-density wall insulation layers.
Problems addressed
Heat transfer through building wallsHeavy conventional wall insulation build-upsWall renovation requiring a coating-based approach
Selection guidance
How this system differs
This series manages heat transfer; it does not replace a structural repair, leak repair or corrosion-control system where those problems are active.
What must be confirmed
Suitability depends on the actual substrate, medium, concentration, temperature cycle, exposure mode and application window. Final system selection and project-specific instructions require technical review.
Product features and advantages
Low density
Low thermal conductivity
Single-component application
Applicable to prepared concrete, render and compatible metal surfaces
Typical application context
Applications and operating conditions
Building Energy Efficiency · Industrial Buildings & Logistics: application review for Building wall · Industrial building envelope.
Thermal-management materials for equipment, pipework and building assemblies where heat-transfer control is required. Confirm the substrate, exposure and maintenance access before final selection.
Suitable equipment
Industries
Building Energy Efficiency
Industrial Buildings & Logistics
Substrates and areas
Internal walls · External walls · Prepared concrete and render
Operating conditions
Building interior or exterior insulation systems
DY-27
Technical parameters
Only values available in the reviewed product source are shown.
Technical parametersValueSource
ComponentsSingle-component paste
Recommended Total Thickness2-3 mm
Full Cure TimeAt least 72 h before finish coat
Container StateUniform slurry after stirringGB/T 6753.3-1986
AppearanceWhite; smoothGB/T 1729-1979
Solid Content≥70%GB/T 1725-2007
Density0.52 g/mlGB/T 6750-2007
Hardness4HGB/T 6739-2006
Thermal CyclingNo abnormalityGB/T 9278-2008
Heat Storage Stability30 d; no abnormalityGB/T 6753.3-1986
AdhesionGrade 1GB/T 9286-1998
Water Resistance168 h; no blistering, cracking or delaminationGB/T 1733-1993
Alkali Resistance168 h; no blistering, cracking or delaminationGB/T 9755-2001
Salt Spray Resistance500 h; no blistering, rust, cracking or delaminationGB/T 1771-2007
Aging Resistance1000 h; no blistering, cracking, delamination or obvious discolourationGB/T 23987-2009
Scrub Resistance≥5000 cyclesGB/T 9266-2009
Thermal Conductivity0.03 W/(m·K)GB/T 22588-2008
Theoretical Coverage1 kg/m² per 1 mm thicknessFactory test
Project application guidance
Confirm substrate condition, contamination, corrosion, defects and access before work starts.
Remove oil, dust and loose material; prepare cleanliness and profile to the reviewed product procedure.
Check compatibility of retained coatings and complete a representative trial area when the existing system is uncertain.
Prepare and mix only according to the product source; do not improvise ratio, thinner or pot life.
Build a continuous system in controlled layers, with special attention to edges, welds, joints and shadow zones.
Protect the applied area through curing, then inspect continuity, visible defects and recorded source-backed acceptance items.
Source-specific procedure
Surface Preparation
Concrete/render must be sound, dry and clean; new cementitious surfaces require curing, moisture <10% and pH <10.
Application Environment
Normally ≥10°C; substrate ≥3°C above dew point; relative humidity ≤85%; stop below 5°C.
Mixing
Stir the single-component paste until uniform.
Application Tools
Trowel, scraper or airless spray.
Thickness per Coat
Build 2-3 mm in multiple coats; do not apply too thickly in one pass.
Curing
At least 72 h before decorative finish coating.
Packaging, storage and transport

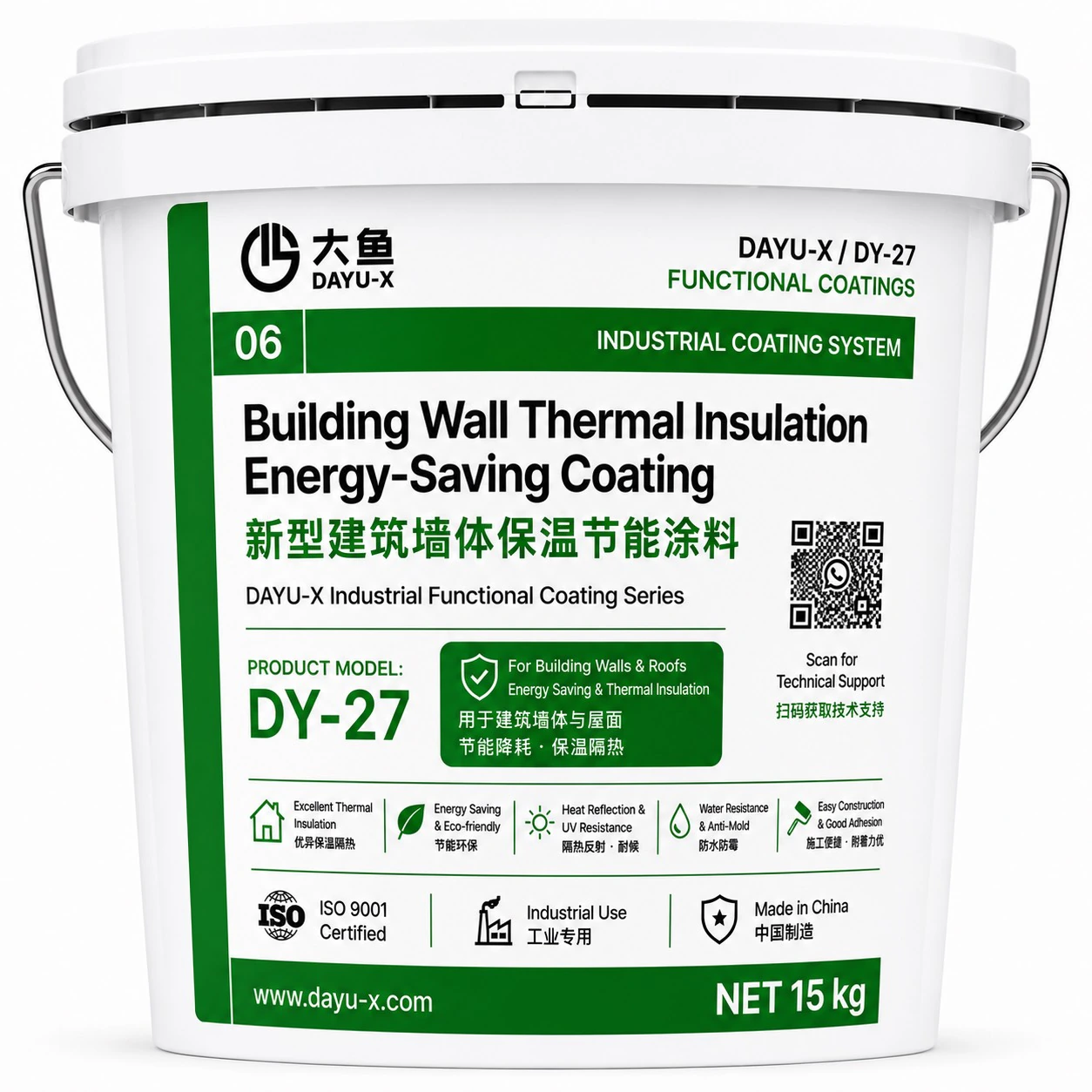

Packaging15 kg/pail
StorageDry, cool, clean interior; protect from freezing and sunlight; 5-40°C
Shelf Life12 months unopened
TransportMaintain 5-40°C
Official product source: New building wall thermal insulation energy-saving coating / DY-27 PDF
Quality checks
Check surface-preparation records, environmental conditions, layer continuity, edges, welds and visible defects. Use only acceptance criteria stated in the reviewed product or project documents.
Maintenance and repair
Inspect representative high-risk locations during planned maintenance. Clean the area, identify the cause of damage, feather sound edges and verify compatibility before local repair.
Scope and limitations
Suitability depends on the actual substrate, medium, concentration, temperature cycle, exposure mode and application window. Final system selection and project-specific instructions require technical review.
Technical documents
Documents for project evaluation
TDS, SDS, MSDS, test reports and other project-related technical documents are available based on specific project requirements. Please contact us through WhatsApp.
Related solutions
Industries
Related technical content
Related cases
Buildings & Energy EfficiencyBuilding façade and exterior surfaces

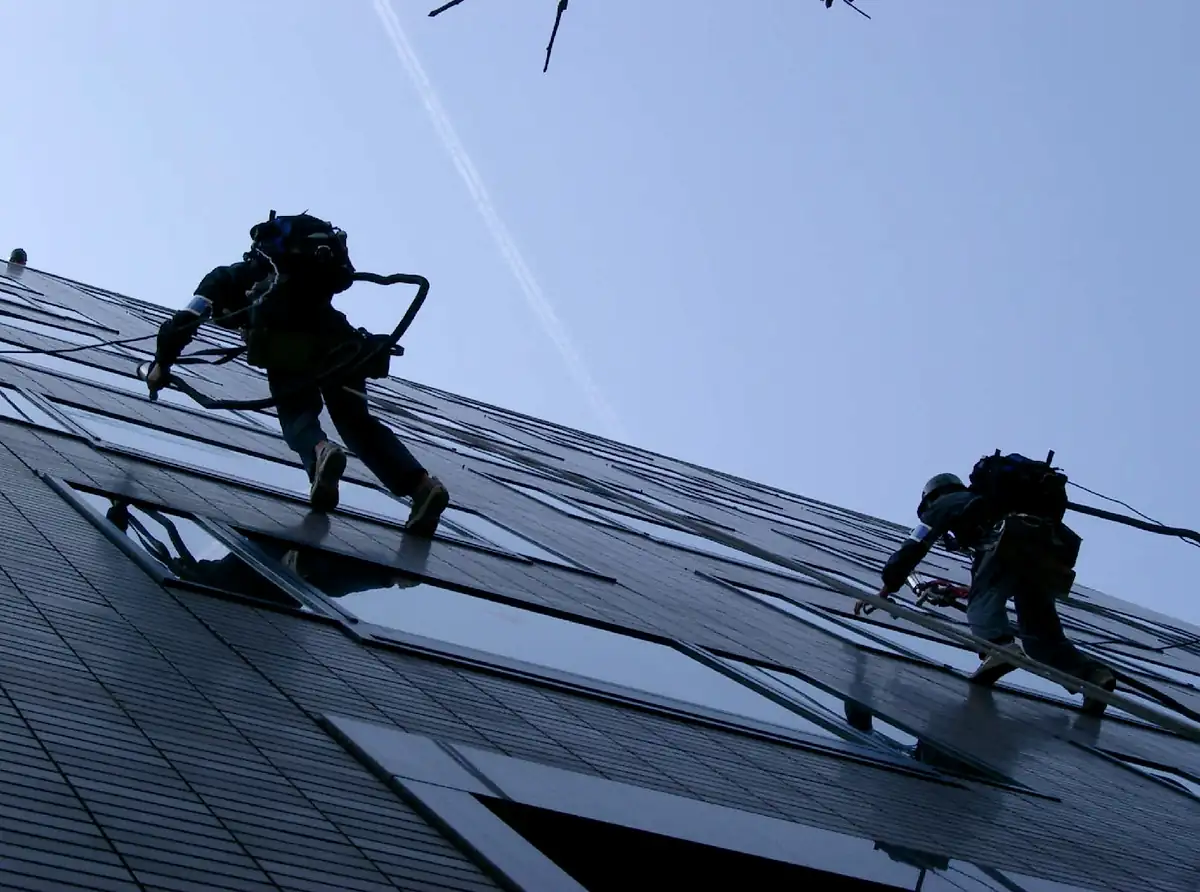

Transparent Building-Surface Insulation Application
