Thermal Insulation Coatings

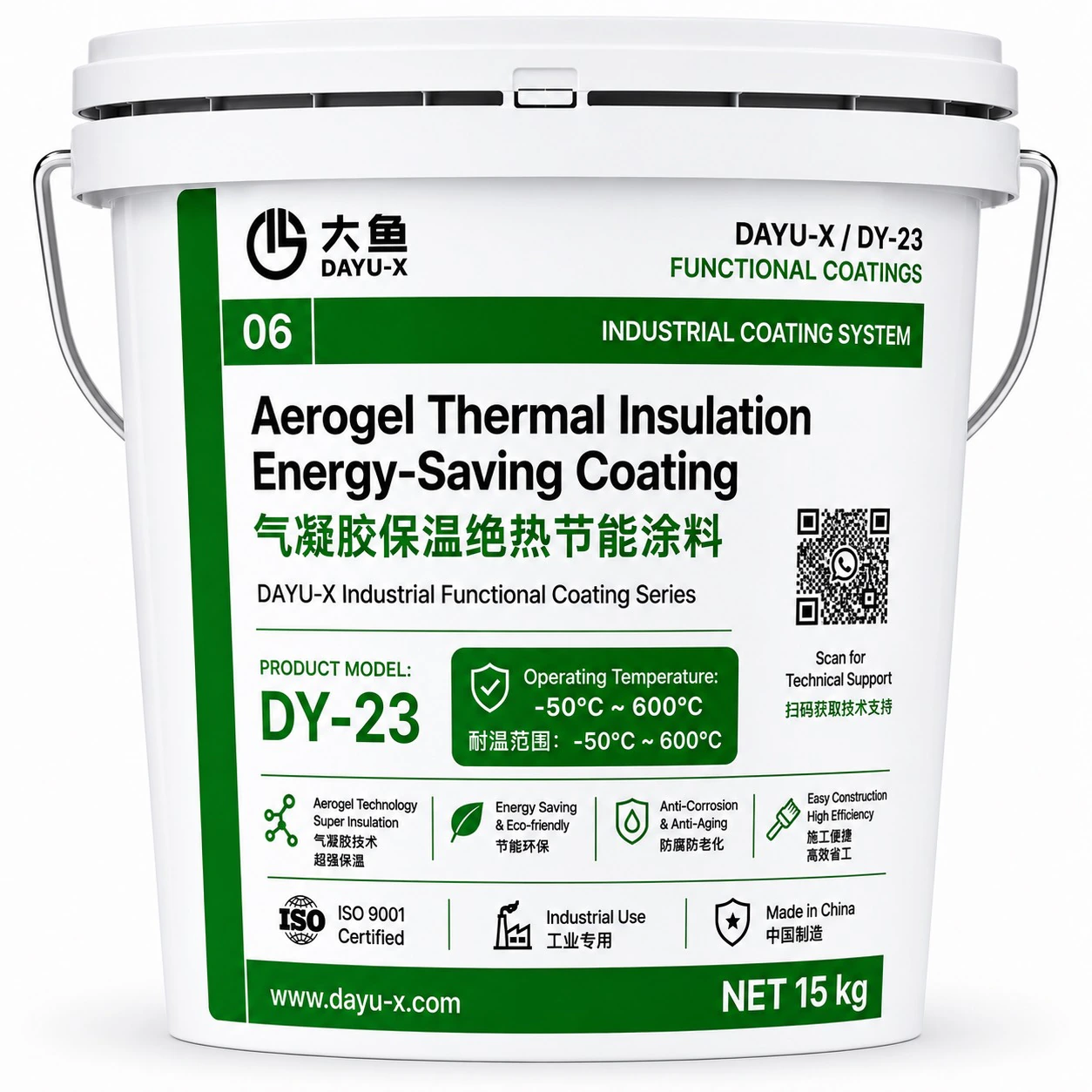

DY-23
Aerogel Thermal Insulation Coating
Thermal-management materials for equipment, pipework and building assemblies where heat-transfer control is required.
Product overview
Thermal-management materials for equipment, pipework and building assemblies where heat-transfer control is required.
A water-based coating combining nano-aerogel, ceramic microspheres, inorganic fibres, potassium titanate whiskers and rare-earth oxides.
Problems addressed
Industrial heat lossHot external equipment surfacesComplex equipment geometry
Selection guidance
How this system differs
This series manages heat transfer; it does not replace a structural repair, leak repair or corrosion-control system where those problems are active.
What must be confirmed
Suitability depends on the actual substrate, medium, concentration, temperature cycle, exposure mode and application window. Final system selection and project-specific instructions require technical review.
Product features and advantages
Low thermal conductivity
Thick-film application
Water-based system
Suitable for metallic and refractory substrates listed in the source
Typical application context
Applications and operating conditions
Power & Energy · Steel · Cement: application review for Boiler · Industrial kiln · Rotary kiln.
Thermal-management materials for equipment, pipework and building assemblies where heat-transfer control is required. Confirm the substrate, exposure and maintenance access before final selection.
Suitable equipment
Industries
Power & Energy
Steel
Cement
Petrochemical & Refining
Substrates and areas
Carbon steel · Stainless steel · Refractory brick · Castable refractory
Operating conditions
-50°C to 600°C stated service range
DY-23
Technical parameters
Only values available in the reviewed product source are shown.
Technical parametersValueSource
Recommended Total Thickness3-15 mm
Full Cure TimeAt least 72 h
Container StateUniform slurry after stirringGB/T 6753.3-1986
AppearanceWhite; smoothGB/T 1729-1979
Solid Content≥70%GB/T 1725-2007
Density0.52 g/mlGB/T 6750-2007
Hardness4HGB/T 6739-2006
Thermal CyclingNo abnormalityGB/T 9278-2008
Heat Storage Stability30 d; no abnormalityGB/T 6753.3-1986
AdhesionGrade 1GB/T 9286-1998
Water Resistance168 h; no blistering, cracking or delaminationGB/T 1733-1993
Alkali Resistance168 h; no blistering, cracking or delaminationGB/T 9755-2001
Salt Spray Resistance500 h; no blistering, rust, cracking or delaminationGB/T 1771-2007
Aging Resistance1000 h; no blistering, cracking, delamination or obvious discolourationGB/T 23987-2009
Scrub Resistance≥5000 cyclesGB/T 9266-2009
Thermal Conductivity0.03 W/(m·K)GB/T 22588-2008
Theoretical Coverage1.2 kg/m² per 1 mm thicknessFactory test
Project application guidance
Confirm substrate condition, contamination, corrosion, defects and access before work starts.
Remove oil, dust and loose material; prepare cleanliness and profile to the reviewed product procedure.
Check compatibility of retained coatings and complete a representative trial area when the existing system is uncertain.
Prepare and mix only according to the product source; do not improvise ratio, thinner or pot life.
Build a continuous system in controlled layers, with special attention to edges, welds, joints and shadow zones.
Protect the applied area through curing, then inspect continuity, visible defects and recorded source-backed acceptance items.
Source-specific procedure
Surface Preparation
Metal to Sa 2.5 or St 3 for local repair; non-metal surfaces clean, sound and free of coke or dust.
Application Environment
5-60°C; relative humidity ≤85%; substrate ≥3°C above dew point.
Mixing
Stir single-component paste until uniform.
Application Tools
Brush, trowel, scraper or texture application.
Thickness per Coat
Build in multiple coats; do not apply the total thickness in one pass.
Curing
At least 72 h before service.
Packaging, storage and transport
Packaging15 kg/pail
StorageCool, dry and ventilated area; 5-40°C
Shelf Life12 months
TransportProtect from contamination and unsuitable temperature
Official product source: Aerogel thermal insulation energy-saving coating -50°C to 600°C / DY-23 source document
Quality checks
Check surface-preparation records, environmental conditions, layer continuity, edges, welds and visible defects. Use only acceptance criteria stated in the reviewed product or project documents.
Maintenance and repair
Inspect representative high-risk locations during planned maintenance. Clean the area, identify the cause of damage, feather sound edges and verify compatibility before local repair.
Scope and limitations
Suitability depends on the actual substrate, medium, concentration, temperature cycle, exposure mode and application window. Final system selection and project-specific instructions require technical review.
Technical documents
Documents for project evaluation
TDS, SDS, MSDS, test reports and other project-related technical documents are available based on specific project requirements. Please contact us through WhatsApp.
Related solutions
Industries
Related technical content
Related cases
CementRotary kiln shell

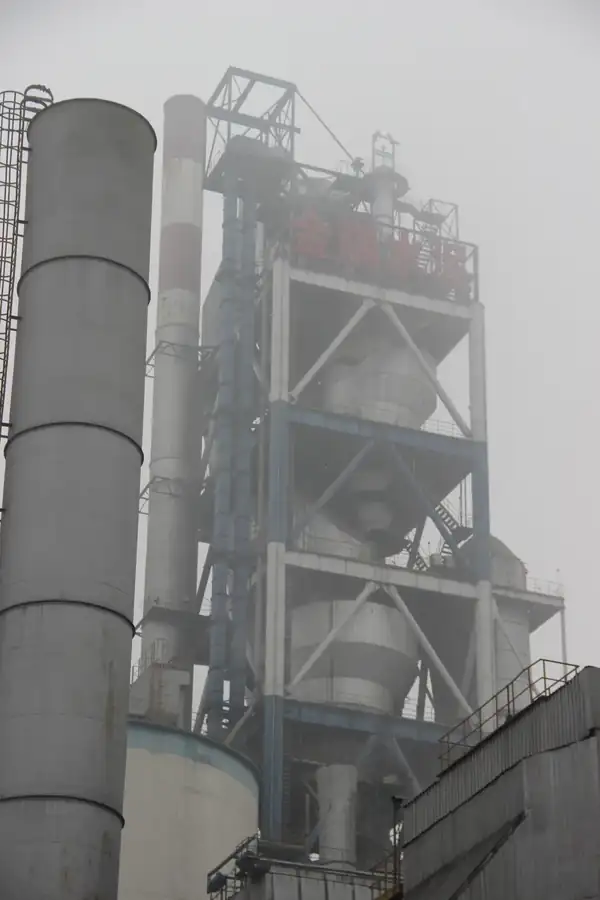

Cement Kiln Shell Thermal-Insulation Project
Continuous heat, thermal cycling and external heat loss around a rotating kiln shell.
View case
Coal ChemicalGasifier waterwall

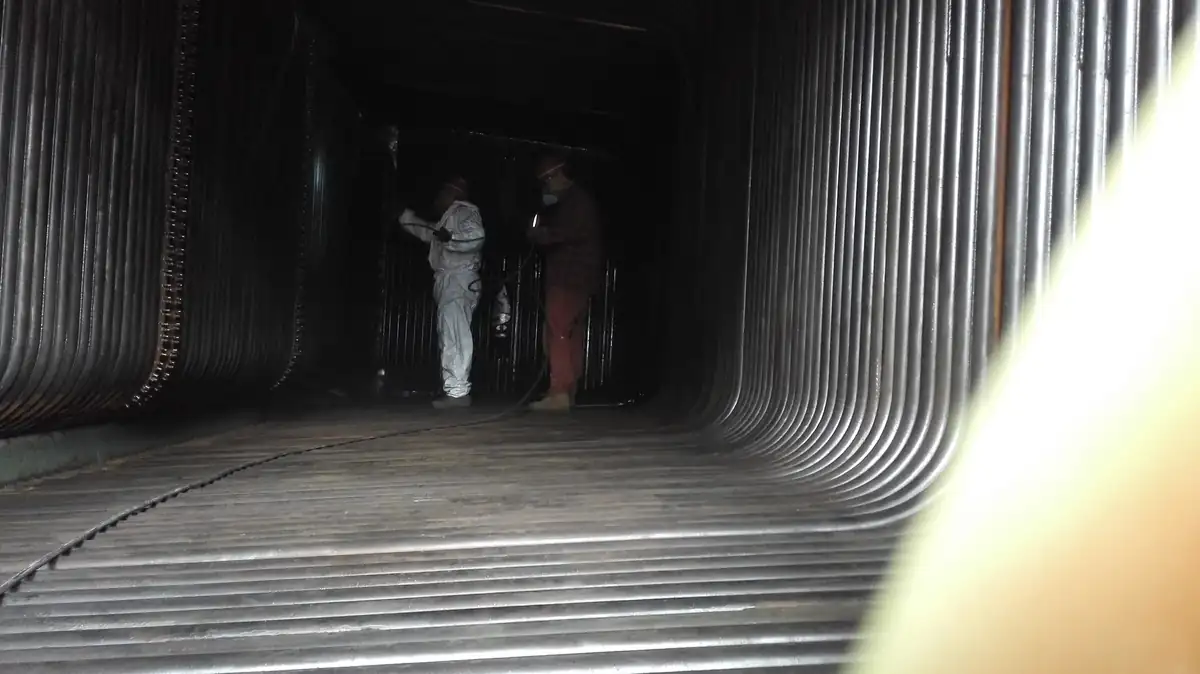

Coal-Chemical Gasifier Waterwall Protection
High temperature, steam erosion, corrosive components and tar deposition on a gasifier waterwall.
View case
PetrochemicalHot process vessel and pipework

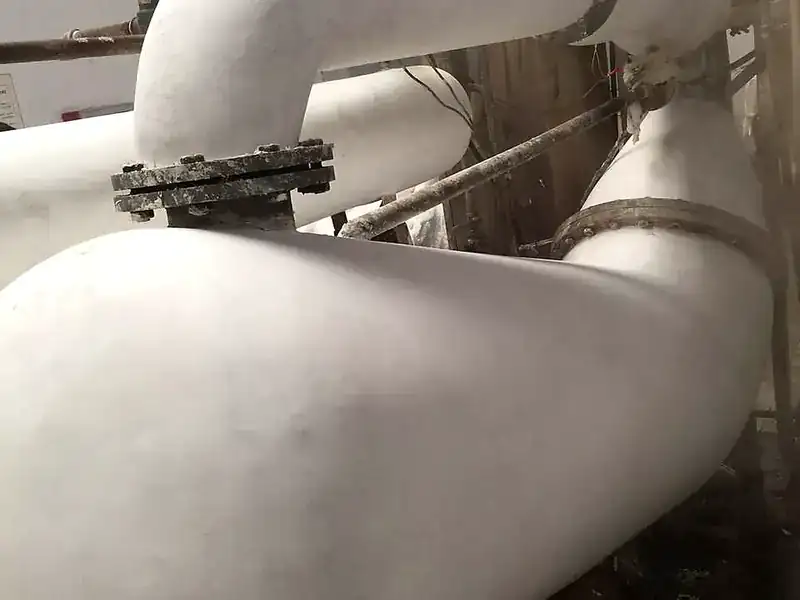

High-Temperature Process Equipment Insulation Review
Radiant heat, heat transfer through a metal shell and restricted access around hot process equipment.
View case
Equipment ManufacturingComplex machinery and metal assemblies

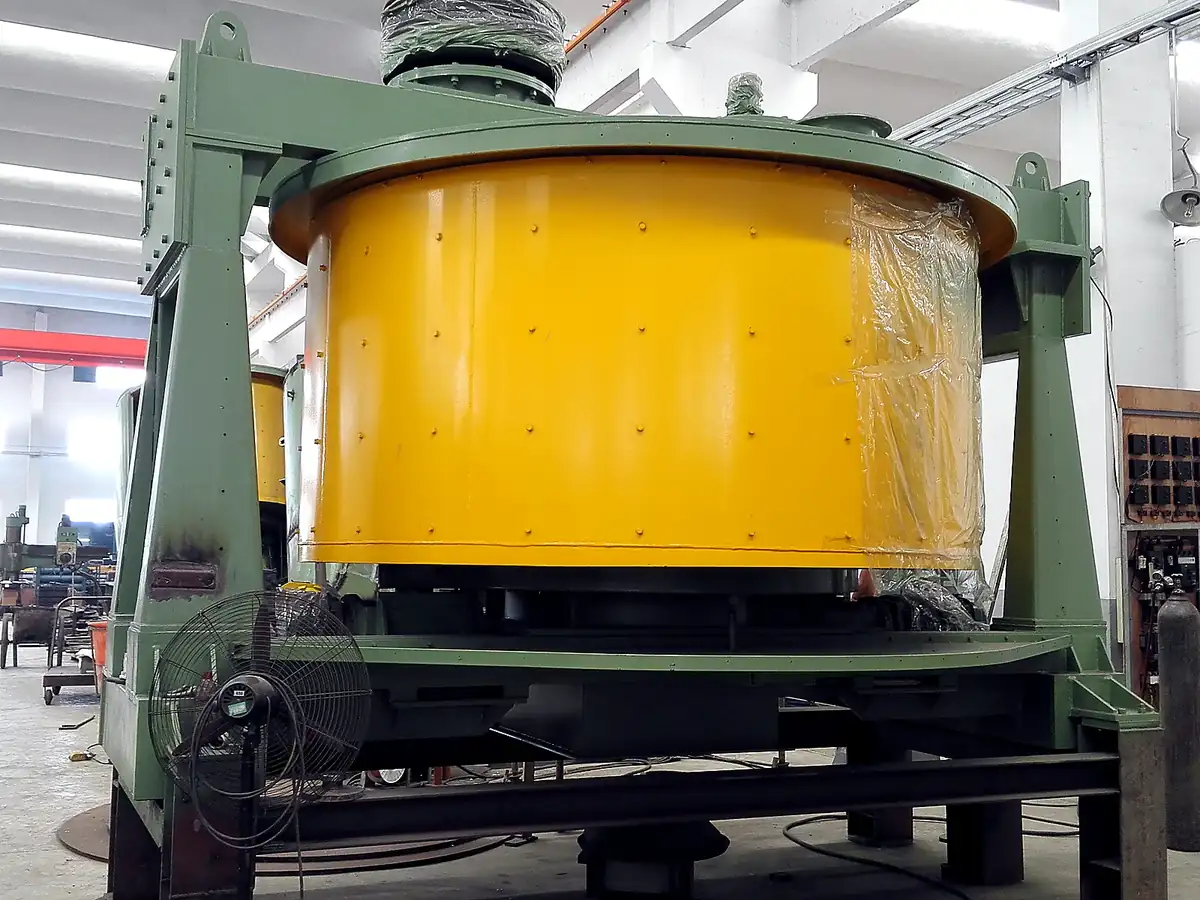

Thermal Insulation on Complex Machinery Surfaces
Irregular metal geometry and maintenance access make conventional insulation difficult to install.
View caseRelated products

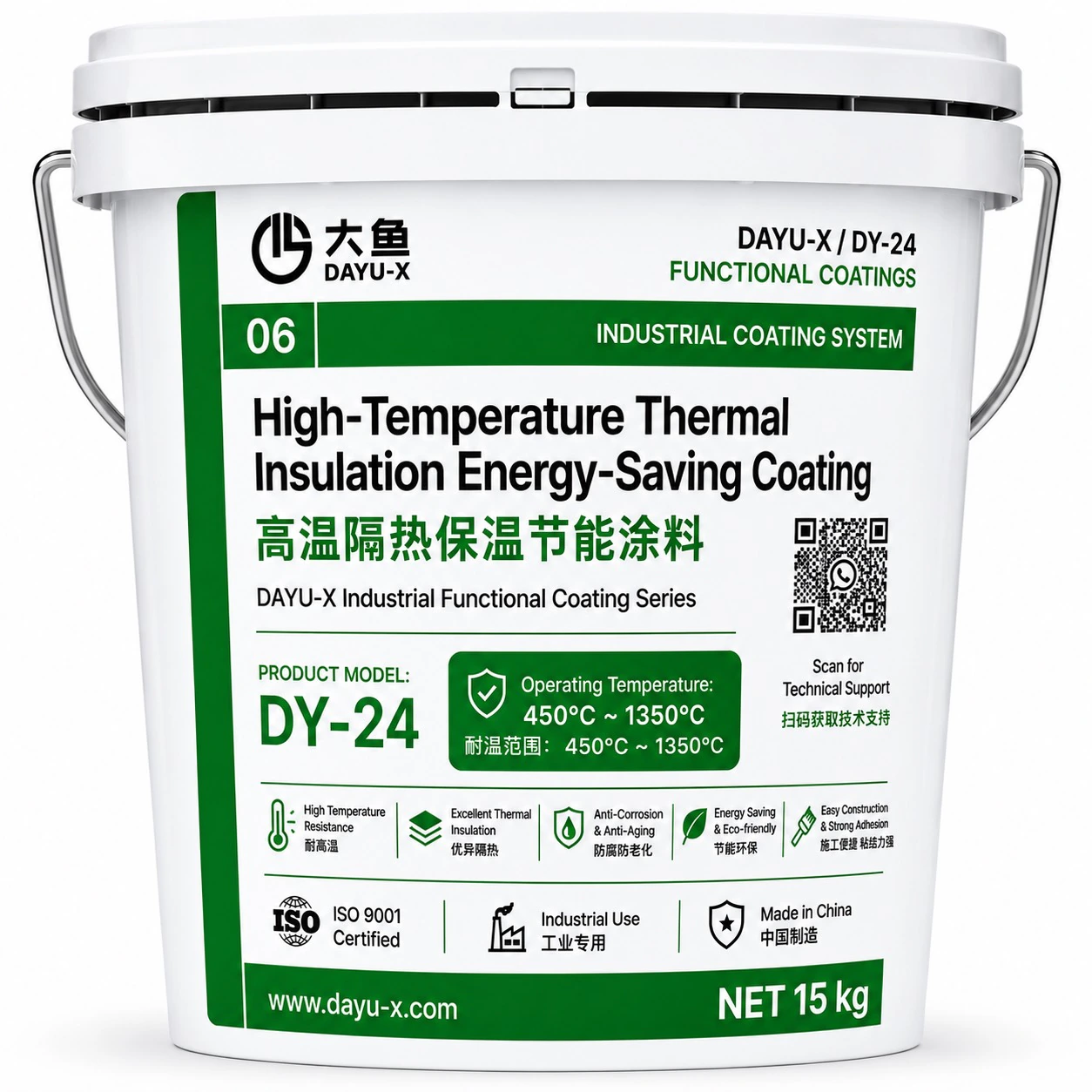

High-Temperature Thermal Insulation Coating
Thermal-management materials for equipment, pipework and building assemblies where heat-transfer control is required.
Typical equipmentBoiler · Industrial kiln
View product

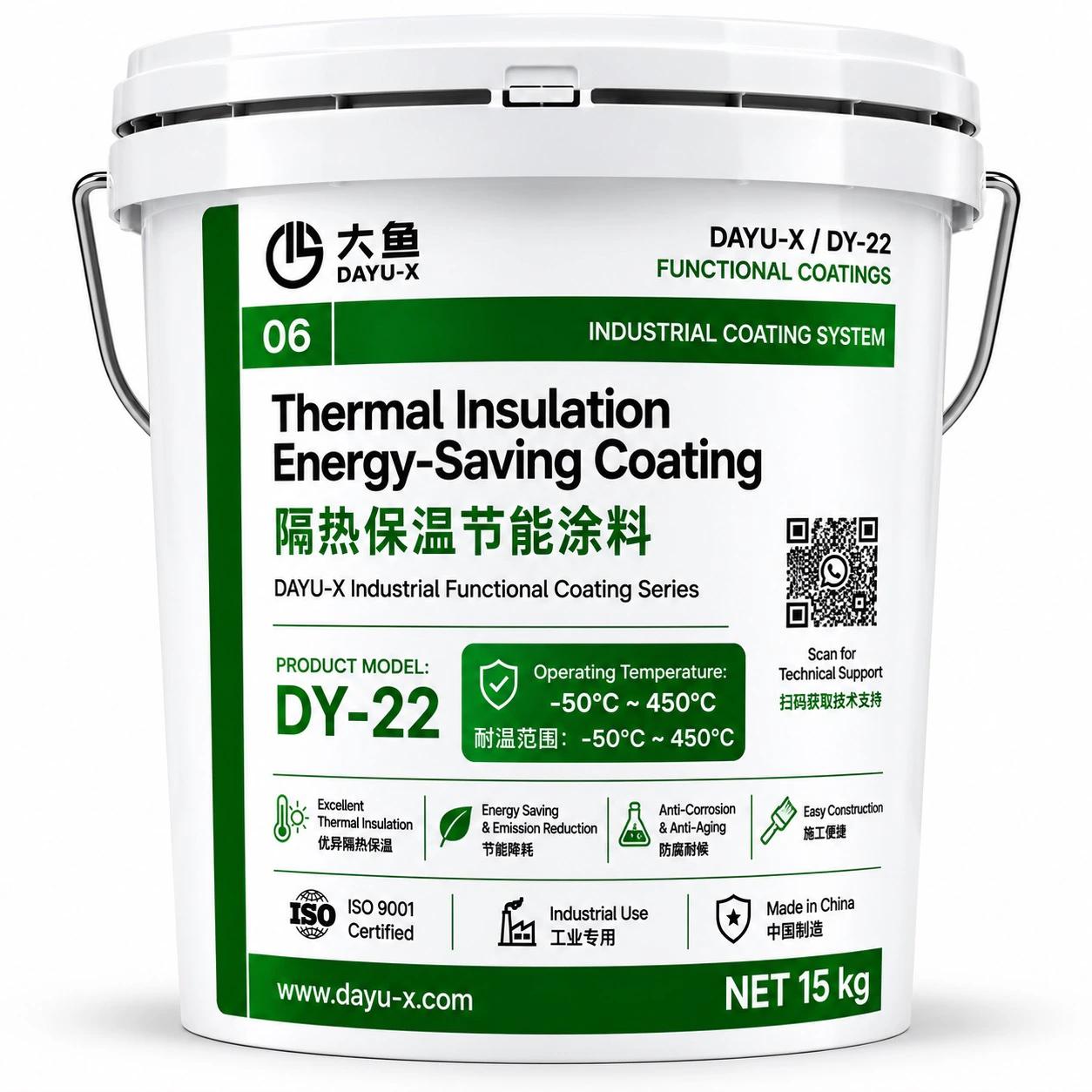

Thermal Insulation Energy-Saving Coating
Thermal-management materials for equipment, pipework and building assemblies where heat-transfer control is required.
Typical equipmentStorage tank · Pipeline
View product

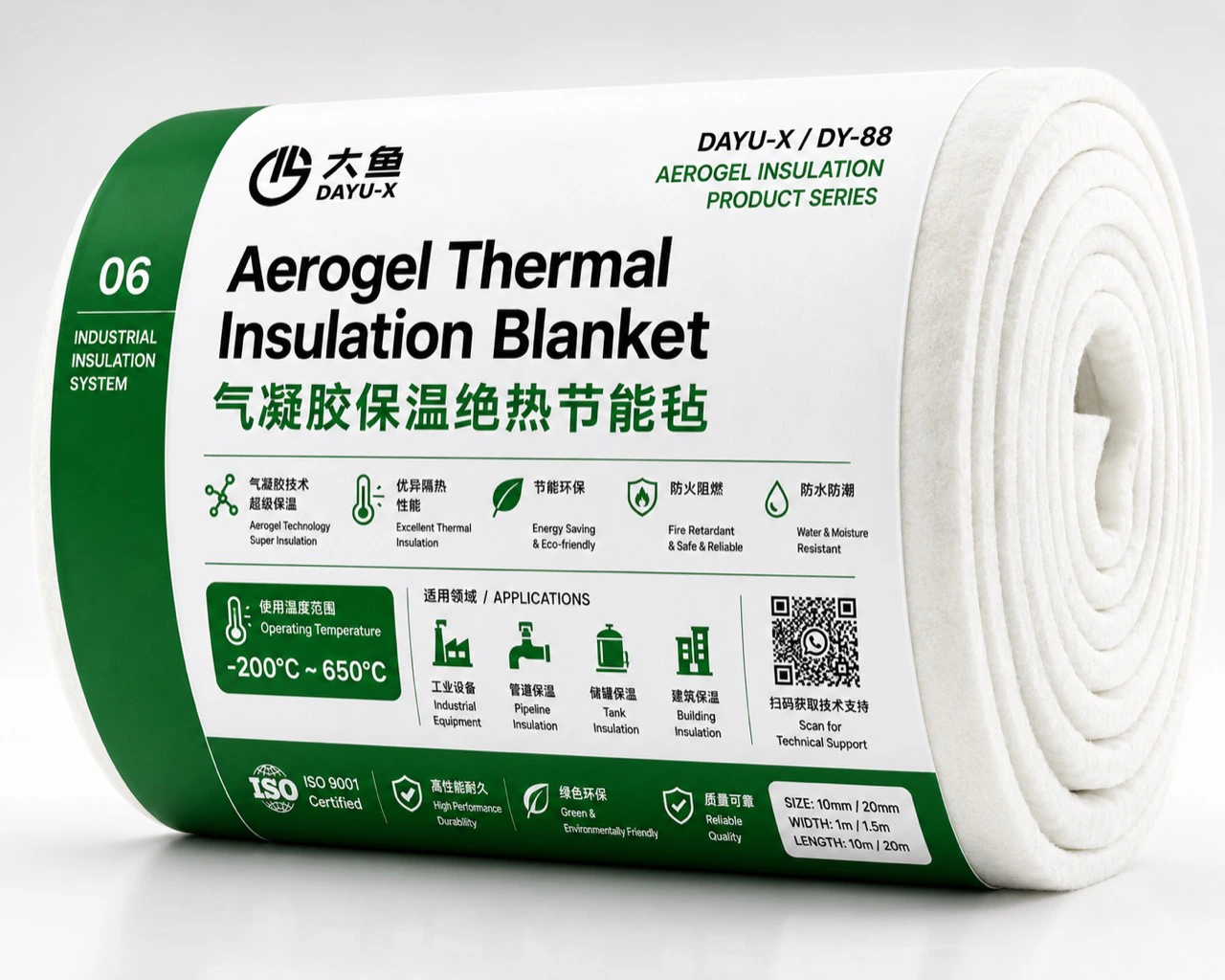

Aerogel Thermal Insulation Blanket
Flexible aerogel insulation blanket for equipment, pipework and tank insulation assemblies.
Typical equipmentIndustrial pipeline · Process equipment
View product

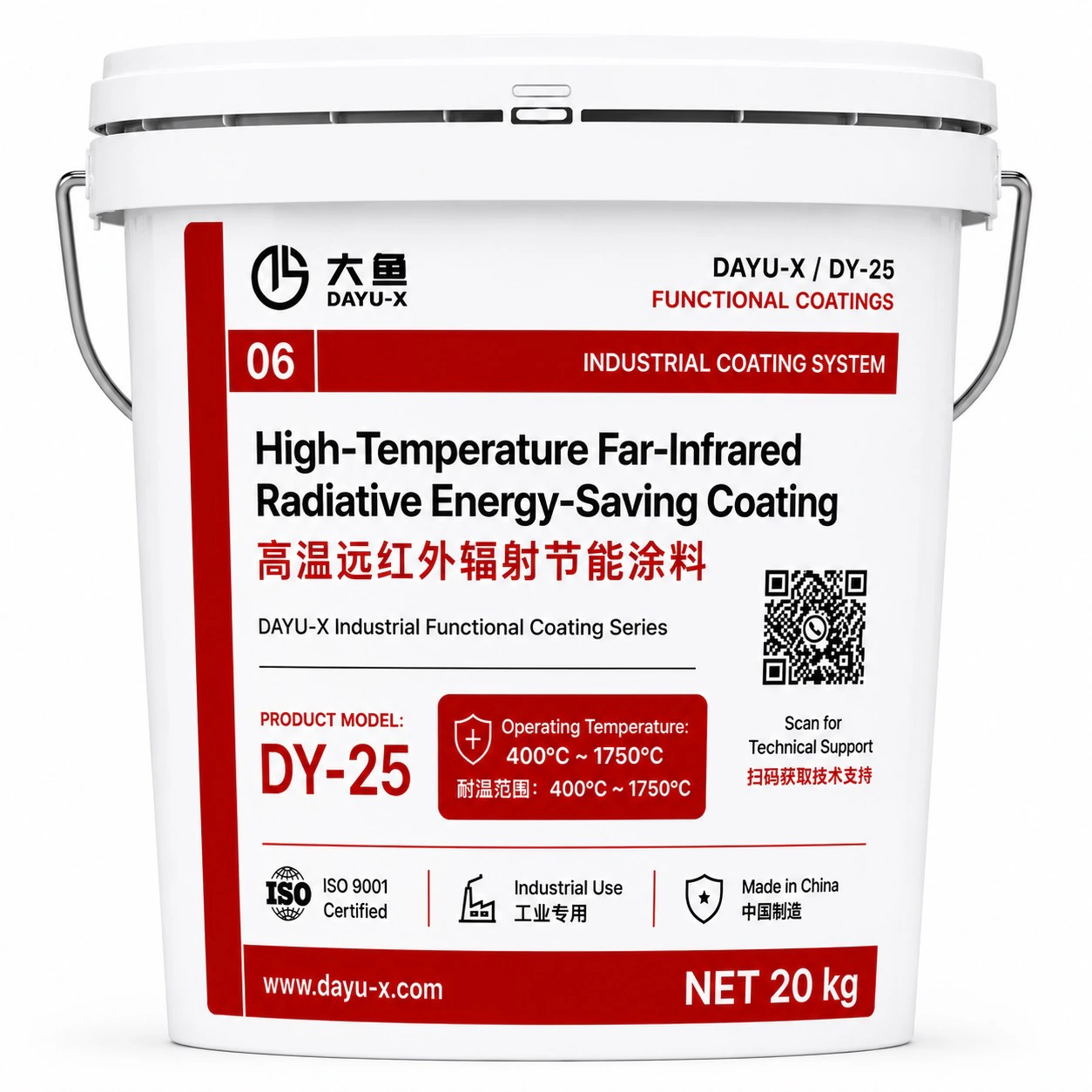

High-Temperature Infrared Radiation Coating
