When this product direction fits
Protective systems selected for the actual temperature, thermal cycle, substrate and corrosive exposure.
High Temperature Protective Coatings
DY-25
High-Temperature Infrared Radiation Coating
Protective systems selected for the actual temperature, thermal cycle, substrate and corrosive exposure.
Product overview
Protective systems selected for the actual temperature, thermal cycle, substrate and corrosive exposure.
A modified inorganic-binder coating with zirconia, boron nitride, nano-ceramic powders and rare-earth oxides for high-temperature refractory and equipment surfaces.
Problems addressed
Low furnace-lining emissivityHigh-temperature surface protectionCoking and contamination on refractory surfaces
Selection guidance
How this system differs
The selection is driven by documented service temperature, thermal cycling and corrosive exposure rather than temperature alone.
What must be confirmed
Suitability depends on the actual substrate, medium, concentration, temperature cycle, exposure mode and application window. Final system selection and project-specific instructions require technical review.
Product features and advantages
High infrared emissivity
High-temperature stability
Hard ceramic surface
Barrier against corrosive atmosphere
Typical application context
Applications and operating conditions
Cement · Steel · Petrochemical & Refining: application review for Industrial kiln · Cracking furnace · High-temperature process equipment.
Protective systems selected for the actual temperature, thermal cycle, substrate and corrosive exposure. Confirm the substrate, exposure and maintenance access before final selection.
Suitable equipment
Industries
Cement
Steel
Petrochemical & Refining
Power & Energy
Substrates and areas
Stainless steel · Refractory brick · Castable refractory · Ceramics · Refractory fibre
Operating conditions
400°C to 1750°C stated service range
DY-25
Technical parameters
Only values available in the reviewed product source are shown.
Technical parametersValueSource
Mixing Ratio1.8-2:1 by weight for two-component form
Recommended Dry Film Thickness125 μm
Touch Dry Time≤2 h at 25±1°C
Hard Dry Time≤48 h at 25±1°C
AppearanceLight green or grey; smoothProduct source
Density2.0-2.3 g/mlProduct source
Theoretical Coverage2.5 m²/kg at 125 μmProduct source
Drying TimeTouch dry ≤2 h; hard dry ≤48 h at 25±1°CProduct source
Solid Content75% by volumeProduct source
AdhesionGrade 1Product source
Infrared Emissivity>0.93Product source
Hardness6HProduct source
Linear Expansion Coefficient5-7×10⁻⁶/°CProduct source
Thermal Shock Resistance1000°C to room temperature, 20 cycles; no cracking or delaminationProduct source
Project application guidance
Confirm substrate condition, contamination, corrosion, defects and access before work starts.
Remove oil, dust and loose material; prepare cleanliness and profile to the reviewed product procedure.
Check compatibility of retained coatings and complete a representative trial area when the existing system is uncertain.
Prepare and mix only according to the product source; do not improvise ratio, thinner or pot life.
Build a continuous system in controlled layers, with special attention to edges, welds, joints and shadow zones.
Protect the applied area through curing, then inspect continuity, visible defects and recorded source-backed acceptance items.
Source-specific procedure
Surface Preparation
Metal to Sa 2.5 or St 3 for local repair; non-metal surfaces clean and free of coke, dust and loose material.
Application Environment
5-60°C; relative humidity ≤85%; substrate ≥3°C above dew point.
Mixing
Single-component: stir until uniform. Two-component: mix powder:liquid at 1.8-2:1 by weight for 3-5 minutes.
Application Tools
Air spray or airless spray, 30-40 cm from substrate.
Curing
24 h stated in application section.
Precautions
Do not use organic solvent thinners or tools contaminated by oil-based coatings.
Packaging, storage and transport
PackagingSingle- or two-component form; 20 kg/pail
StorageDry, cool area away from sunlight, heat and ignition sources; 5-40°C
Shelf Life12 months unopened
TransportMaintain 5-40°C
Official product source: High-temperature infrared radiation energy-saving coating / DY-25 PDF
Quality checks
Check surface-preparation records, environmental conditions, layer continuity, edges, welds and visible defects. Use only acceptance criteria stated in the reviewed product or project documents.
Maintenance and repair
Inspect representative high-risk locations during planned maintenance. Clean the area, identify the cause of damage, feather sound edges and verify compatibility before local repair.
Scope and limitations
Suitability depends on the actual substrate, medium, concentration, temperature cycle, exposure mode and application window. Final system selection and project-specific instructions require technical review.
Technical documents
Documents for project evaluation
TDS, SDS, MSDS, test reports and other project-related technical documents are available based on specific project requirements. Please contact us through WhatsApp.
Related solutions
Industries
Related technical content
Related cases

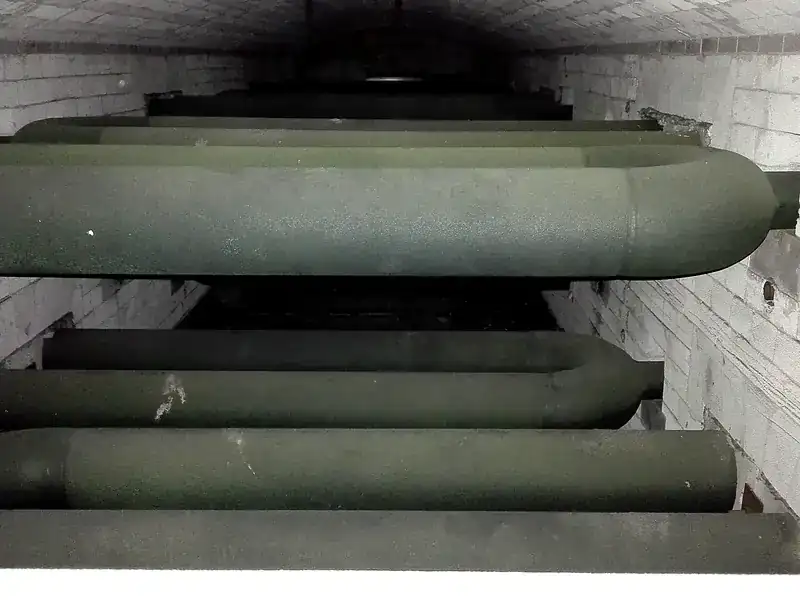

SteelAnnealing furnace wall and radiant tubes
Annealing Furnace Wall and Radiant-Tube Protection
High temperature, repeated thermal cycling and deposits on furnace walls, rollers and radiant tubes.
View case

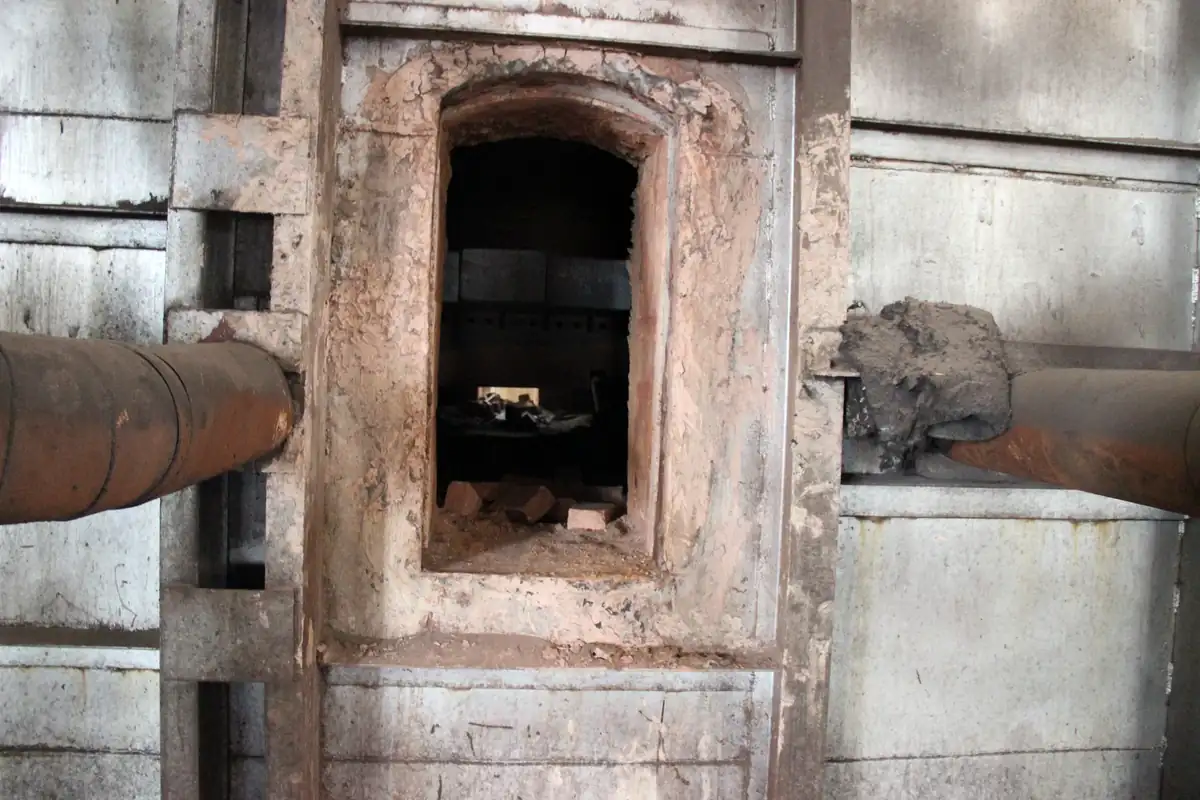

SteelHigh-temperature furnace and rollers
High-Temperature Furnace Coking, Wear and Application
High temperature, repeated thermal cycling and deposits on furnace walls, rollers and radiant tubes.
View case

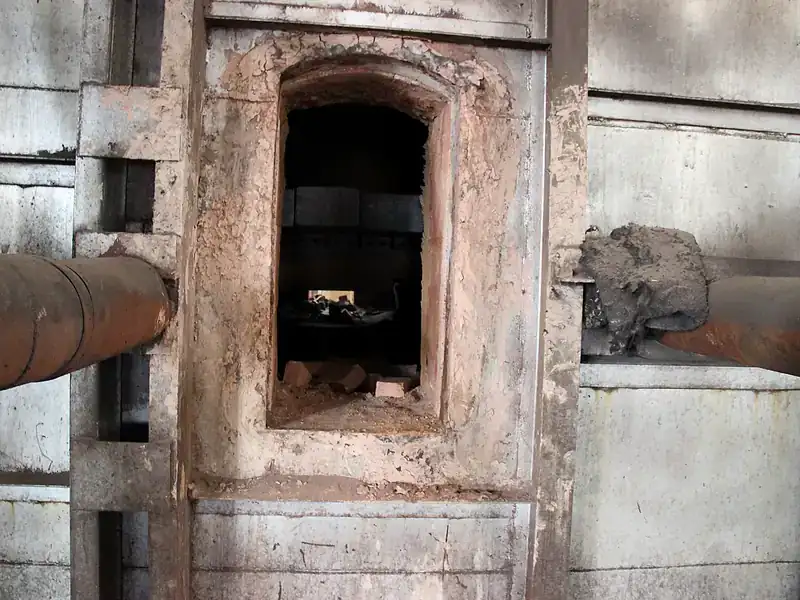

SteelIndustrial furnace chamber and refractory lining
Industrial Furnace High-Temperature Functional-Layer Application
Shutdown access, refractory condition, dust, residual heat and the geometry around openings determine the preparation and application sequence.
View case

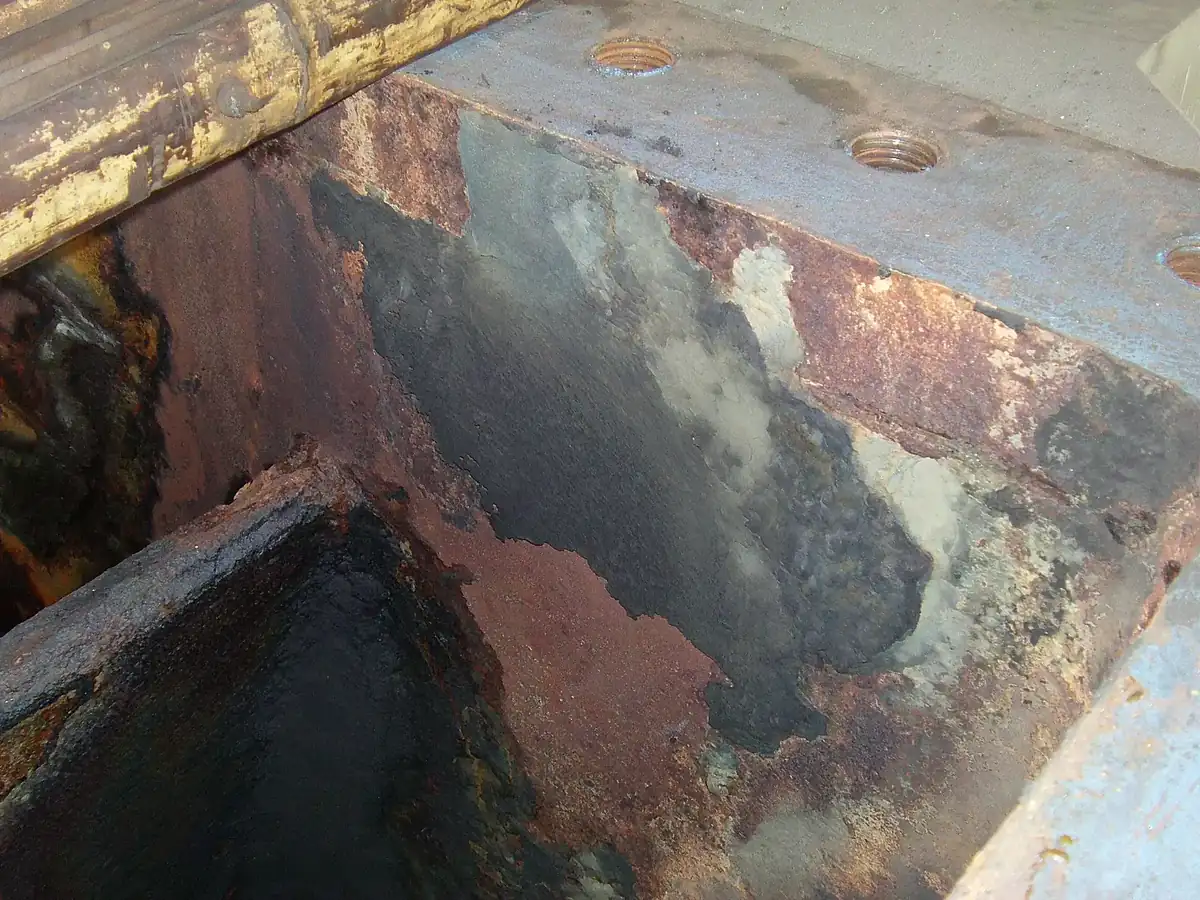

SteelHigh-temperature process equipment and metal surfaces
High-Temperature Equipment Corrosion Inspection
Heat, oxidation, deposits, old surface layers and restricted access during shutdown inspection.
View caseRelated products
High-Temperature Anti-Corrosion Coating 300-800°C
Protective systems selected for the actual temperature, thermal cycle, substrate and corrosive exposure.
Typical equipmentFurnace shell · Drying oven
View product
High-Temperature Anti-Corrosion Coating
Protective systems selected for the actual temperature, thermal cycle, substrate and corrosive exposure.
Typical equipmentIndustrial kiln · High-temperature pipeline
View product

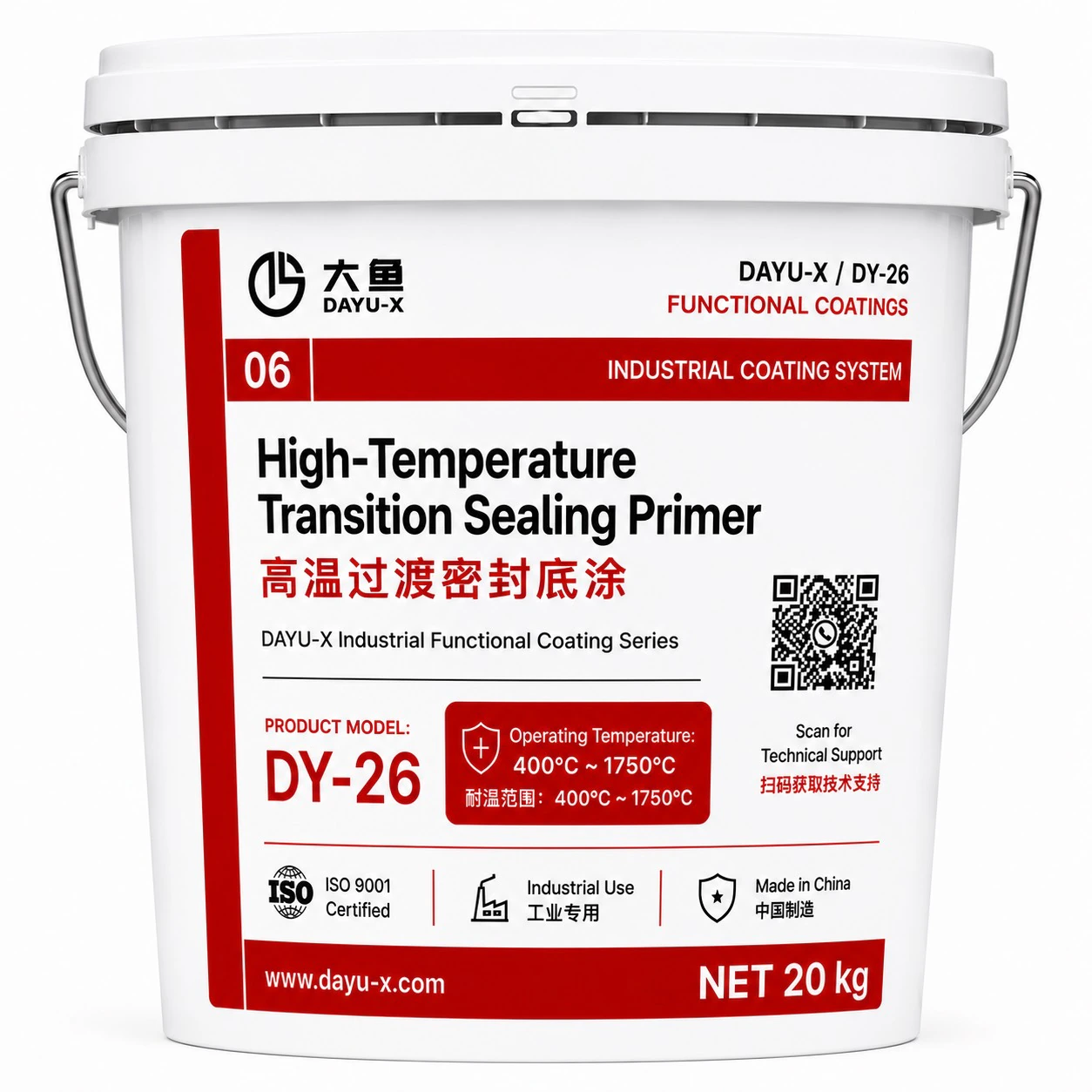

High-Temperature Transition Sealer Primer
Protective systems selected for the actual temperature, thermal cycle, substrate and corrosive exposure.
Typical equipmentThermal-sprayed metal · High-temperature equipment
View product

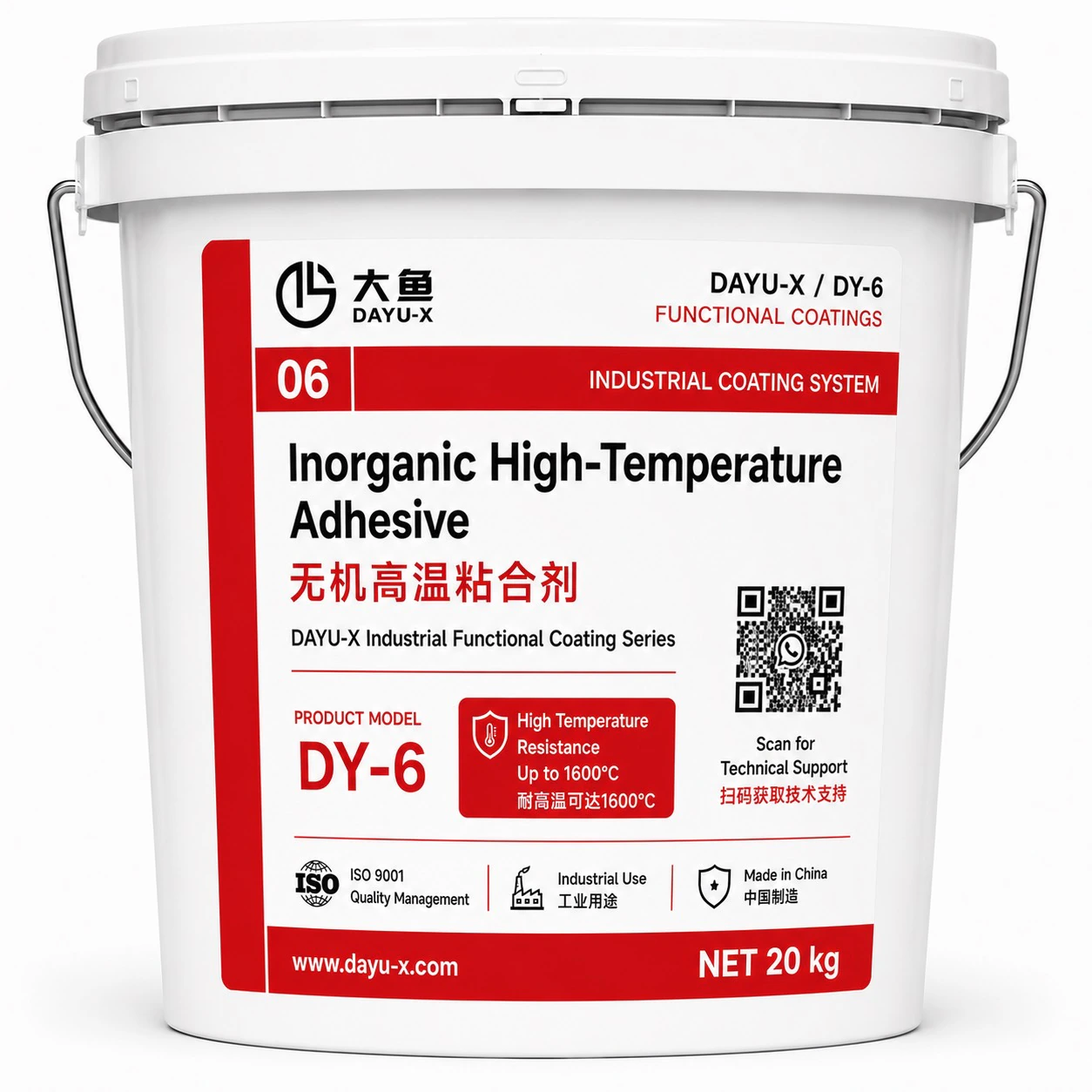

Inorganic High-Temperature Adhesive
